Modular Concrete Formwork System & Concrete Molds from JinKe Technology
Product details
Strict standardized processing governs all production steps. Raw steel plate quality screening comes first, followed by CNC precise cutting and automated full penetration welding for reinforcing ribs. Surface derusting and anti-rust coating apply after structural shaping. Every finished formwork unit passes dimension calibration and concrete load pressure tests to meet universal scaffolding and formwork safety standards.
Product Specifications
|

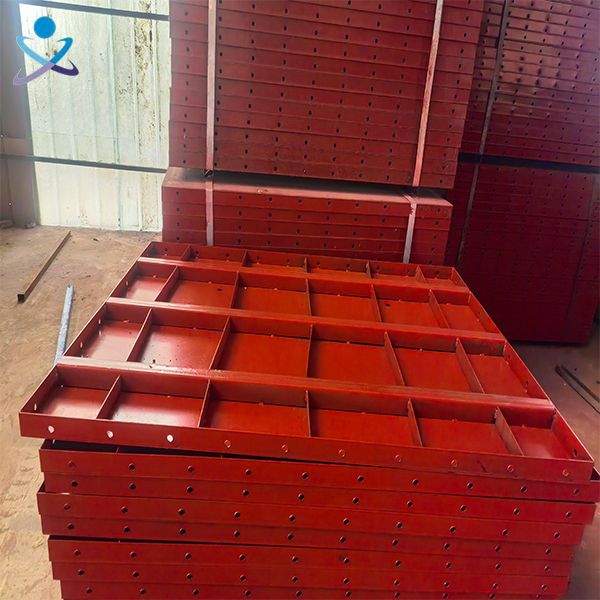

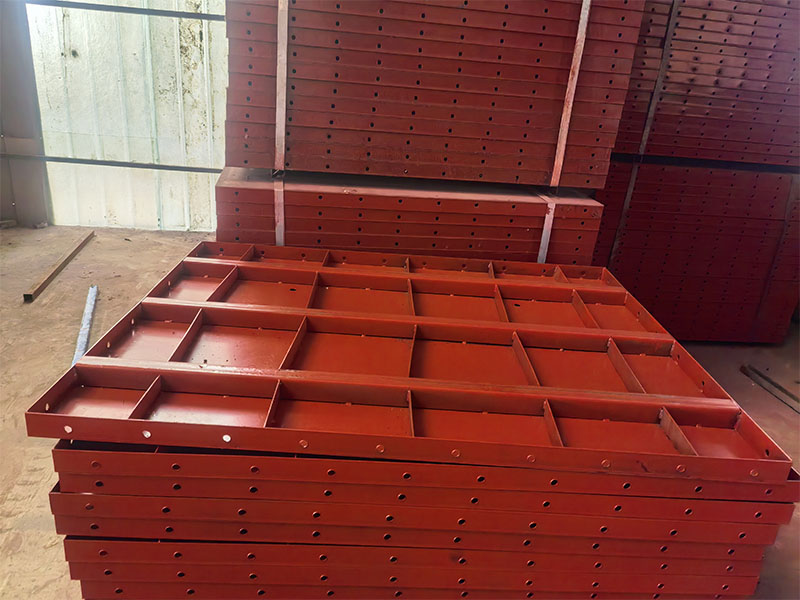

Flat/Pile Cap Formwork |
||
|
Image Specifications (mm) |
Thickness （mm） |
Weight (kg) |
|
200*1500mm |
2.5 |
11 |
|
300*1500mm |
2.5 |
16 |
|
600*1500mm |
2.5 |
33 |
|
1000*1500mm |
2.5 |
52 |
|
300*1200mm |
2.5 |
12.8 |
|
600*1200mm |
2.5 |
26.5 |
|
300*2400mm |
3 |
31 |
|
Cylindrical Steel Formwork |
||
|
Image Height (mm) |
Diameter (mm) |
Panel/Rib Thickness (mm) |
|
1500 |
500 |
3//5 |
|
1500 |
600 |
3//5 |
|
2000 |
500 |
3//5 |
|
2000 |
600 |
3//5 |
|

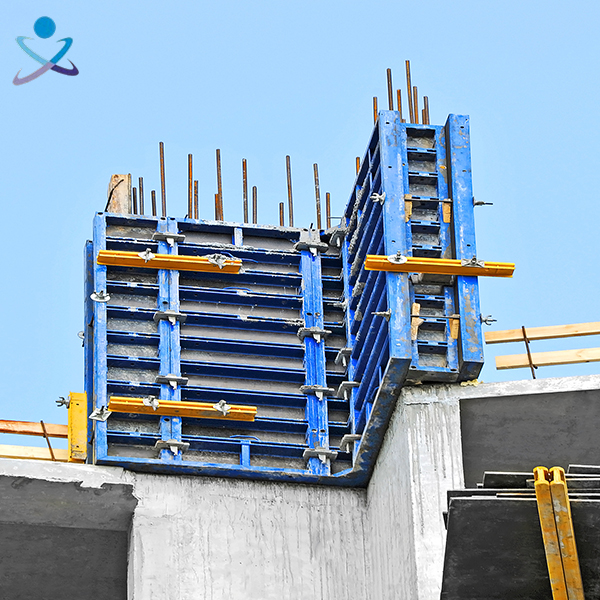

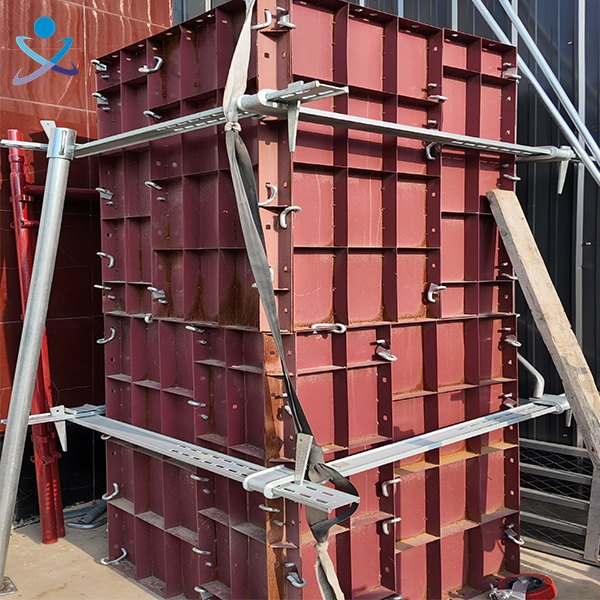

Adjustable Square Column Formwork |
||
|
Image Height (m) |
Adjustment Range (mm) |
Panel/Rib Thickness (mm) |
|
1.5 |
200-600 |
3//5 |
|
1.5 |
200-800 |
3//5 |
|
2.4 |
200-600 |
3//5 |
|
2.4 |
200-800 |
3//5 |
|

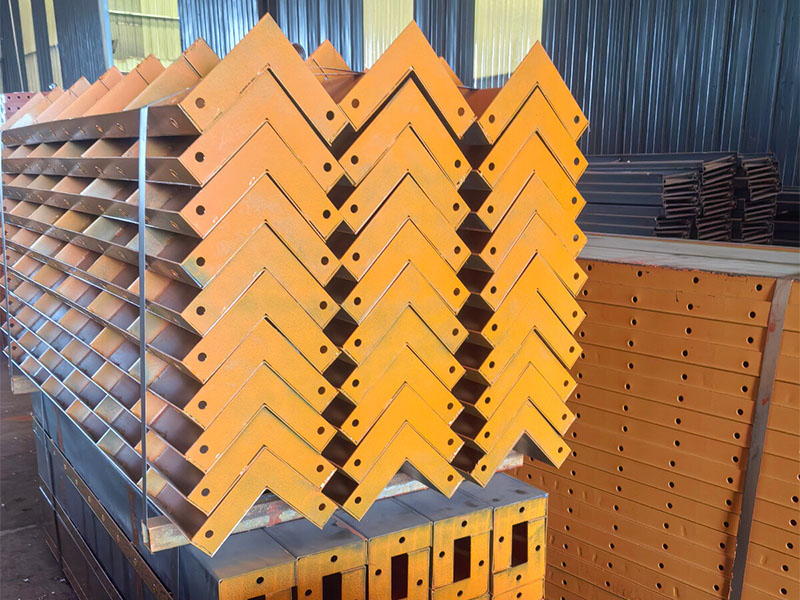

Internal and External Corner Formwork |
||
|
Image Specifications (mm) |
Weight (kg) |
 |
|
100×100*1200 |
9 |
|
|
100×100*1500 |
12.5 |
|
Details & craftsmanship

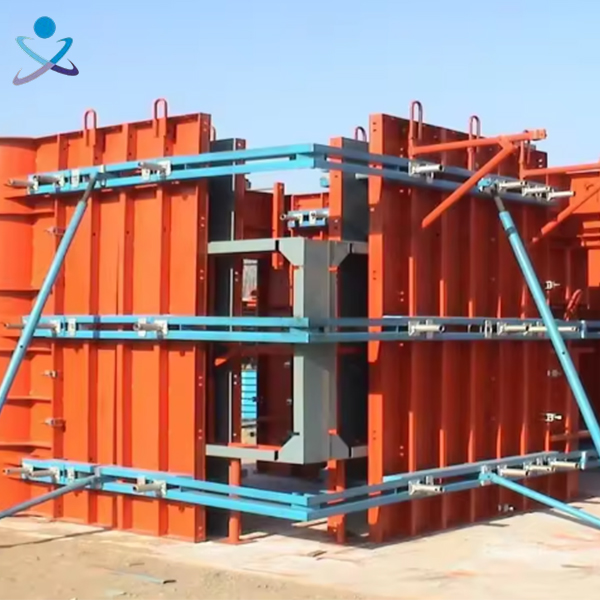

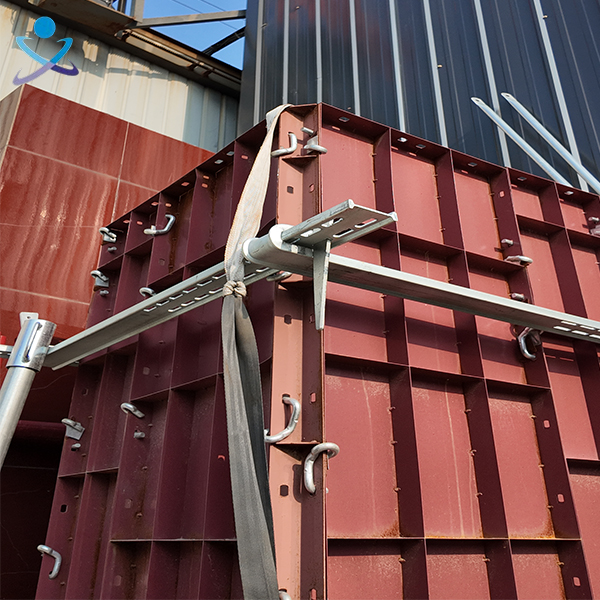

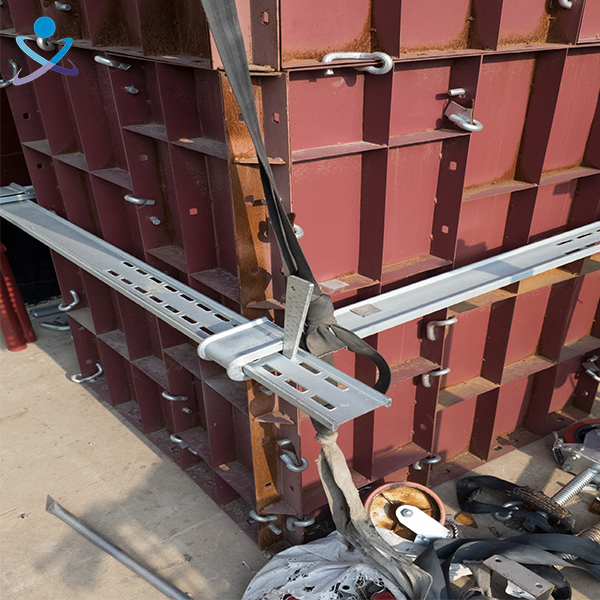

Unique structural details upgrade steel formwork practicality. Interlocking panel connections stop concrete slurry leakage. Supporting U-clips and tie rods speed up on-site assembly. Thickened internal ribs enhance load capacity during heavy concrete pouring. Complete formwork sets pair well with frame scaffolding and telescopic shoring props to build firm temporary support frameworks. Smooth inner panel surfaces create flat concrete surfaces and cut subsequent plastering workload.
Compliance & Certification
Steel formwork meets international safety standards with full test credentials including CE EN12810, ISO9001, SGS and Intertek inspection reports. Product specifications comply with construction regulations of Peru, Chile, EU and Middle Eastern markets. Custom sizes and structural adjustments available to match diverse global building project requirements.
Typical application scenarios

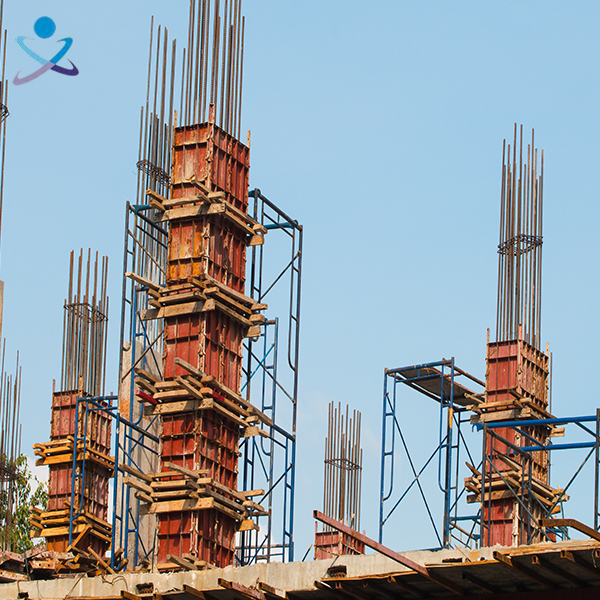

- Wide application scope covers high-rise wall casting, building column forming, floor slab pouring, bridge pier construction, tunnel lining and water conservancy engineering. Steel formwork replaces single-use wood panels. High turnover times greatly reduce overall project material costs compared with conventional formwork materials.
Transport Packaging
One-stop scaffolding export logistics support. Customized packaging, space-saving loading, multiple shipping methods (FCL/LCL/Door to Door). Reliable and cost-effective global delivery.
