Modular Cuplock Scaffolding System Hot Dip Galvanized CE Q235 Steel Cup Lock Scaffold for Building Shoring

Modular scaffolding system covers ring lock scaffolding and Cup lock Scaffolding, core scaffolding for construction built with Q235/Q345 high tensile steel tubes, finished with hot dip galvanization or anti-rust paint. Standard tube thickness ranges 2.5mm–3.5mm, vertical uprights made in 0.5m to 4m segmented sizes, custom lengths available for special layouts. Contractors, masonry crews and infrastructure builders rely on this system. Stable anti-corrosion performance fits coastal humid zones, dusty construction yards and long-term outdoor exposure across South America, Middle East and Southeast Asia.

Product details

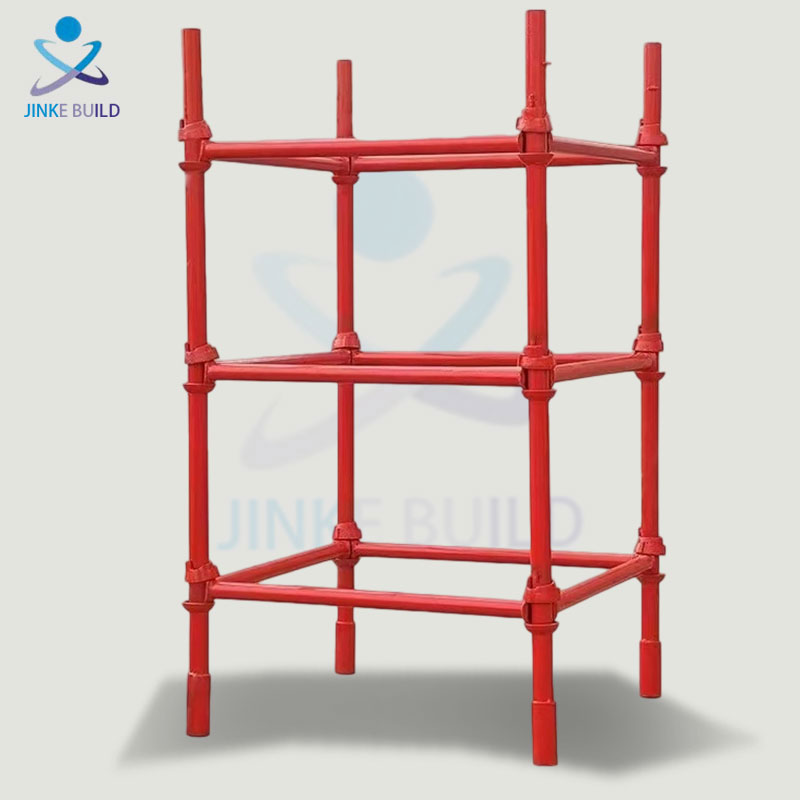

Cuplock scaffolding is a heavy-duty modular system scaffolding widely adopted in global construction. It features a unique cup-and-blade node mechanism, enabling up to four members to lock at one joint without nuts, bolts or loose couplers. As one of the most reliable scaffolding systems, cuplock scaffolding delivers high structural rigidity, fast erection and outstanding load capacity for building access and formwork shoring projects.

Details & craftsmanship

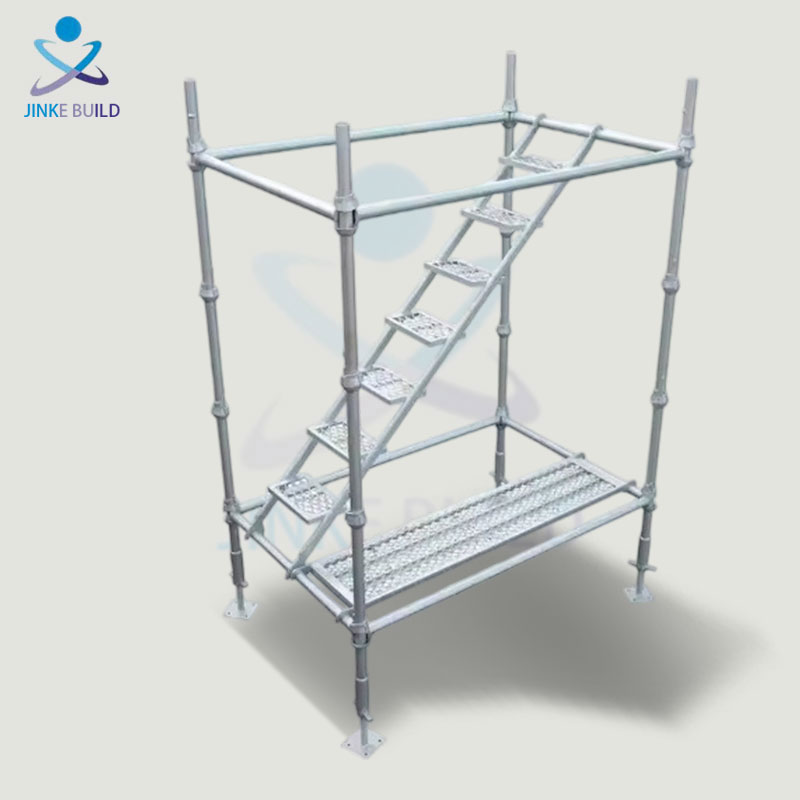

Distinct structural details separate two mainstream modular scaffolding. Ringlock scaffold system equips multi-hole rosettes for up to 8 directional connections, adapts curved and irregular building outlines. Cuplock Scaffolding uses upper and lower cup locking design for 4-way horizontal links, fast assembly for regular straight facades. Matched walk boards, stair ladders and diagonal braces integrate seamlessly with kwikstage scaffolding accessories to build complete stable access frameworks.

Compliance & Certification

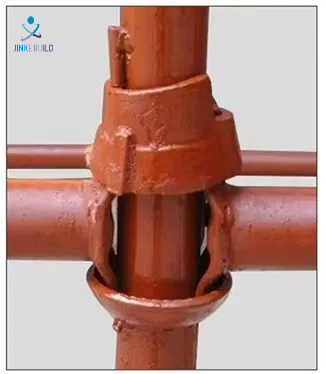

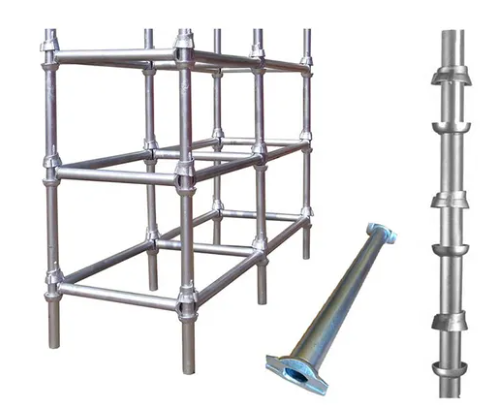

Welded lower cups are fixed on vertical standards every 500mm. Horizontal ledgers come with forged blades at both ends. During assembly, insert ledger blades into the lower cup, slide down the sliding top cup and hammer to lock firmly. This positive locking creates rigid connections and prevents accidental disengagement. No extra fasteners are needed, greatly cutting assembly time and reducing lost spare parts on site.

Typical application scenarios

Wide application scope covers high-rise exterior renovation, residential building construction, bridge pier forming, tunnel lining, factory maintenance and large stage erection. Modular scaffolding system replaces traditional tube-clamp scaffolding, cuts assembly labor hours and supports hundreds of reuse cycles to lower long-term project material costs..

Transport Packaging

One-stop scaffolding export logistics support. Customized packaging, space-saving loading, multiple shipping methods (FCL/LCL/Door to Door). Reliable and cost-effective global delivery.
