Product details

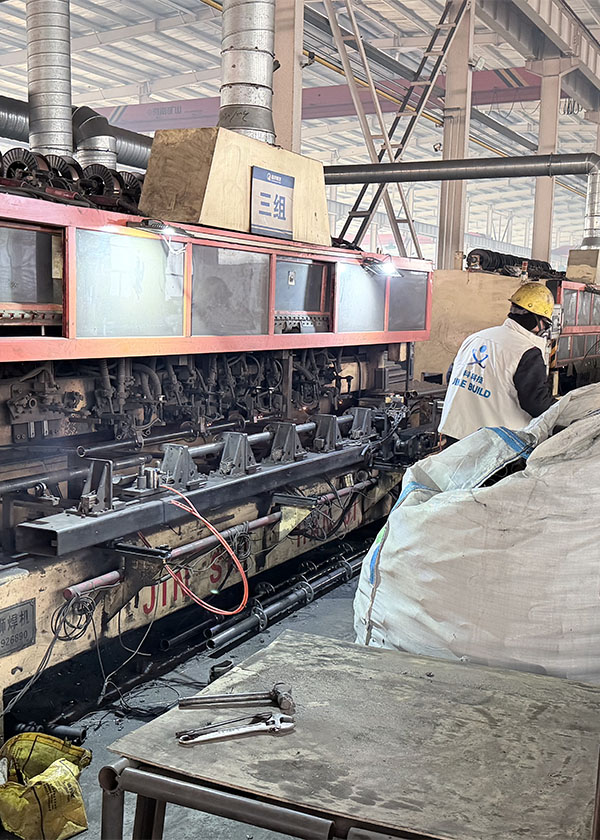

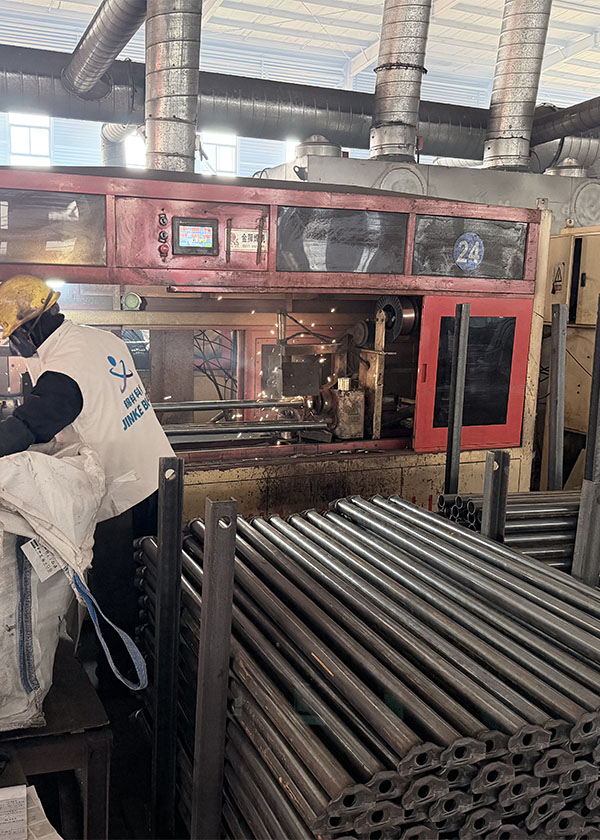

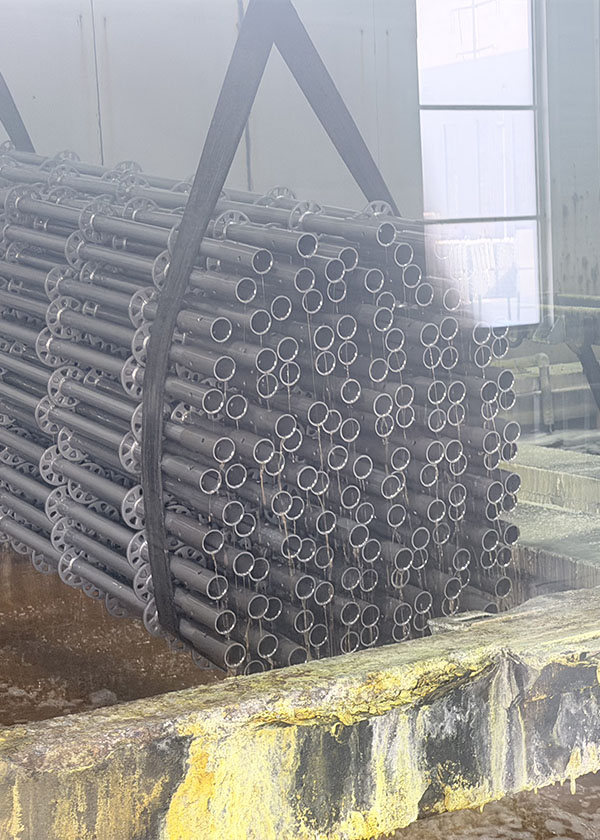

Fixed standardized processing controls every production step. Raw steel tube wall thickness inspection comes first, followed by CNC cutting, automatic full penetration welding for rosettes and cup joints. Forged connection parts undergo heat treatment to boost hardness. Derusting and galvanizing treatment finish surface processing. Every batch of ringlock scaffold system and Cuplock Scaffolding passes static load pressure test and dimensional calibration to match universal scaffolding safety standards.
Product Specifications
|
48 Series Disc-lock Scaffolding - Uprights |
||||
|
Model code |
size (mm) |
Material |
Packaging(Root) |
Unit weight (kg) |
|
JK-RL-SD-3000 |
48.3*3.25*3000 |
Q355B/Q235B |
161 |
15.5 |
|
JK-RL-SD-2500 |
48.3*3.25*2500 |
Q355B/Q235B |
161 |
13.1 |
|
JK-RL-SD-2000 |
48.3*3.25*2000 |
Q355B/Q235B |
161 |
10.8 |
|
JK-RL-SD-1500 |
48.3*3.25*1500 |
Q355B/Q235B |
161 |
8.44 |
|
JK-RL-SD-1000 |
48.3*3.25*1000 |
Q355B/Q235B |
322 |
6.02 |
|
JK-RL-SD-500 |
48.3*3.25*500 |
Q355B/Q235B |
480 |
3.48 |
|
48 Series Disc-lock Scaffolding -crossbar |
||||
|
Model code |
size (mm) |
Material |
Packaging(Root) |
Unit weight (kg) |
|
JK-RL-LG-300 |
48.3*2.75*300 |
Q235 |
500 |
1.41 |
|
JK-RL-LG-600 |
48.3*2.75*600 |
Q235 |
336 |
2.46 |
|
JK-RL-LG-900 |
48.3*2.75*900 |
Q235 |
336 |
3.39 |
|
JK-RL-LG-1200 |
48.3*2.75*1200 |
Q235 |
336 |
4.35 |
|
JK-RL-LG-1500 |
48.3*2.75*1500 |
Q235 |
336 |
5.31 |
|
JK-RL-LG-1800 |
48.3*2.75*1800 |
Q235 |
336 |
6.23 |
|
48 Series Disc-Lock Scaffolding - Diagonal Tie Rod |
||||
|
Model code |
size (mm) |
Material |
Packaging(Root) |
Unit weight (kg) |
|
JK-RL-XG-600*1500 |
42*2.75（L600*H1500) |
Q195 |
300 |
5.5 |
|
JK-RL-XG-900*1500 |
42*2.75（L900*H1500) |
Q195 |
300 |
5.77 |
|
JK-RL-XG-1200*1500 |
42*2.75（L1200*H1500) |
Q195 |
300 |
6.16 |
|
JK-RL-XG-1500*1500 |
42*2.75（L1500*H1500) |
Q195 |
300 |
6.57 |
|
JK-RL-XG-1800*1500 |
42*2.75（L1800*H1500) |
Q195 |
300 |
7.3 |
Details & craftsmanship

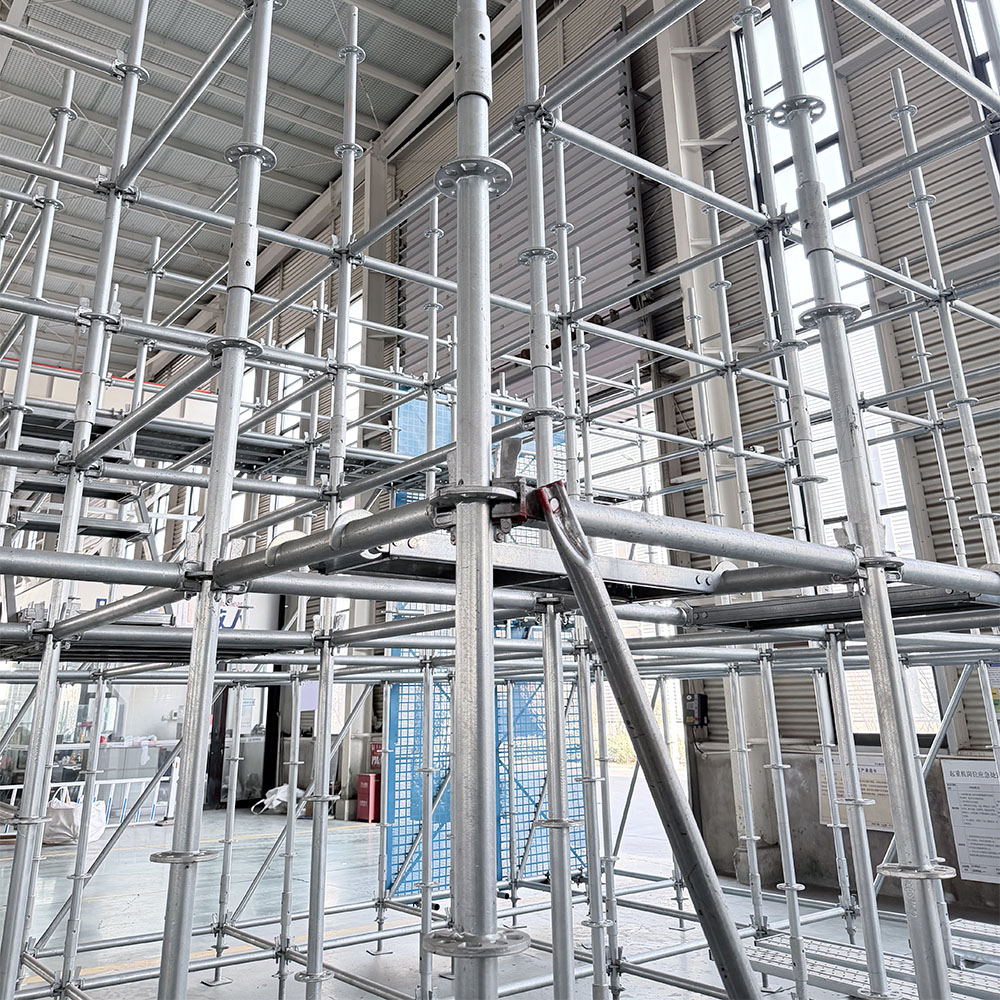

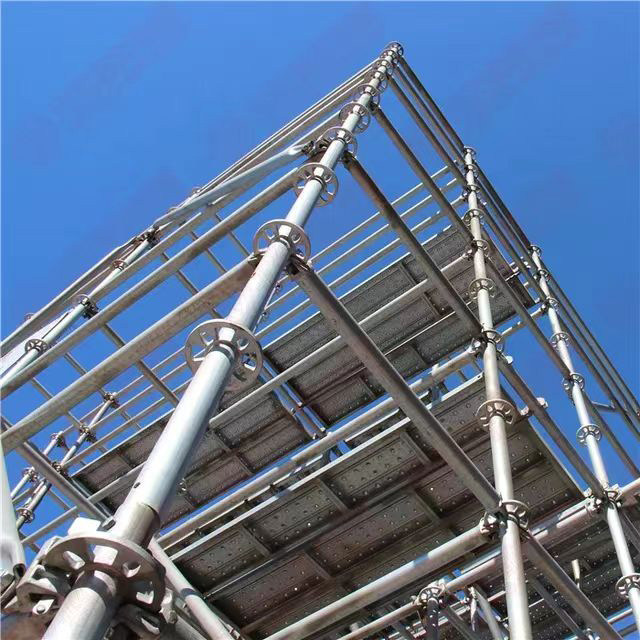

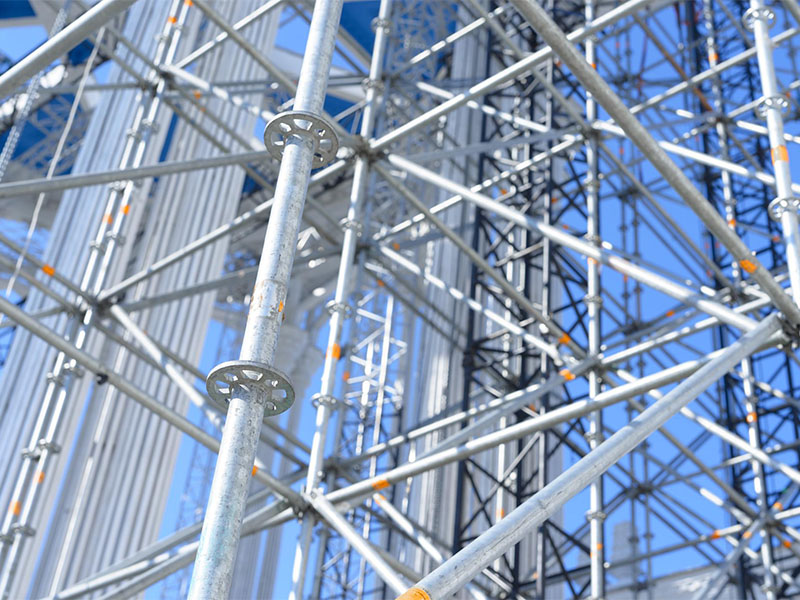

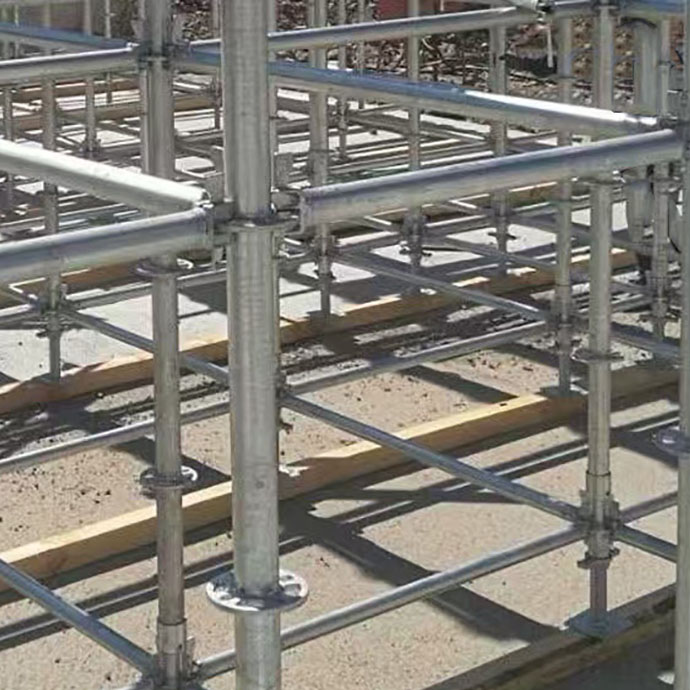

Distinct structural details separate two mainstream modular scaffolding. Ringlock scaffold system equips multi-hole rosettes for up to 8 directional connections, adapts curved and irregular building outlines. Cuplock Scaffolding uses upper and lower cup locking design for 4-way horizontal links, fast assembly for regular straight facades. Matched walk boards, stair ladders and diagonal braces integrate seamlessly with kwikstage scaffolding accessories to build complete stable access frameworks.
Compliance & Certification
Modular scaffolding meets international construction safety standards with complete test credentials including CE EN12811, ISO9001, SGS and Intertek inspection reports. Product specifications comply with construction supervision codes of Peru, Chile, EU and Middle Eastern regions. Custom tube thickness, connection sizes and surface treatment adjustments available to fit diverse global building project standards.
Typical application scenarios
- Wide application scope covers high-rise exterior renovation, residential building construction, bridge pier forming, tunnel lining, factory maintenance and large stage erection. Modular scaffolding system replaces traditional tube-clamp scaffolding, cuts assembly labor hours and supports hundreds of reuse cycles to lower long-term project material costs..

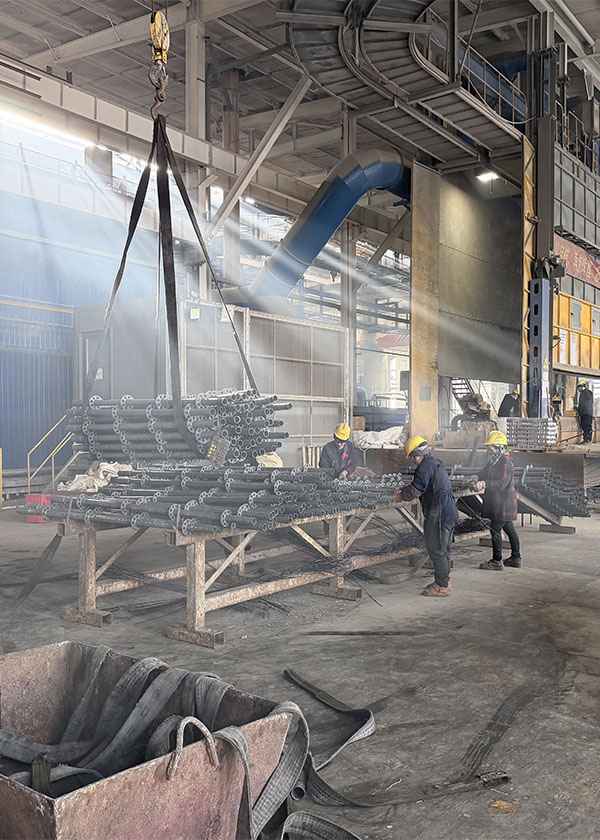

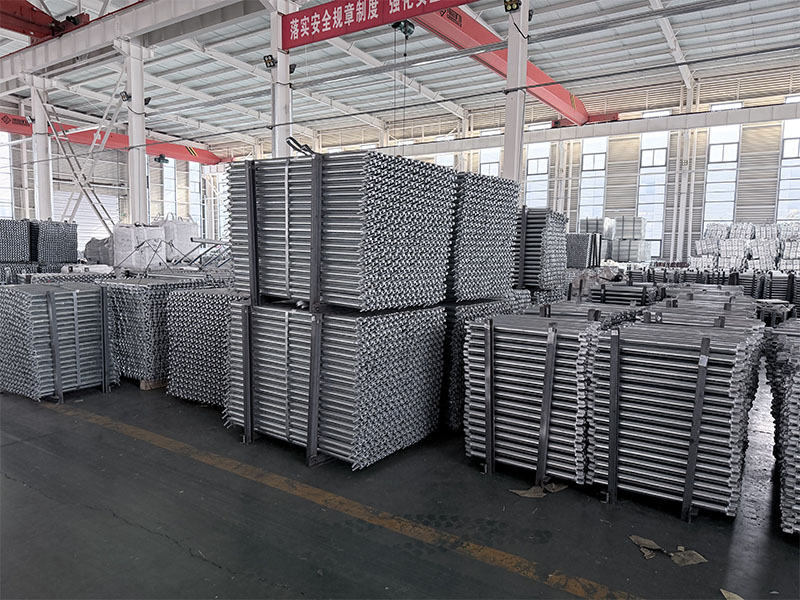

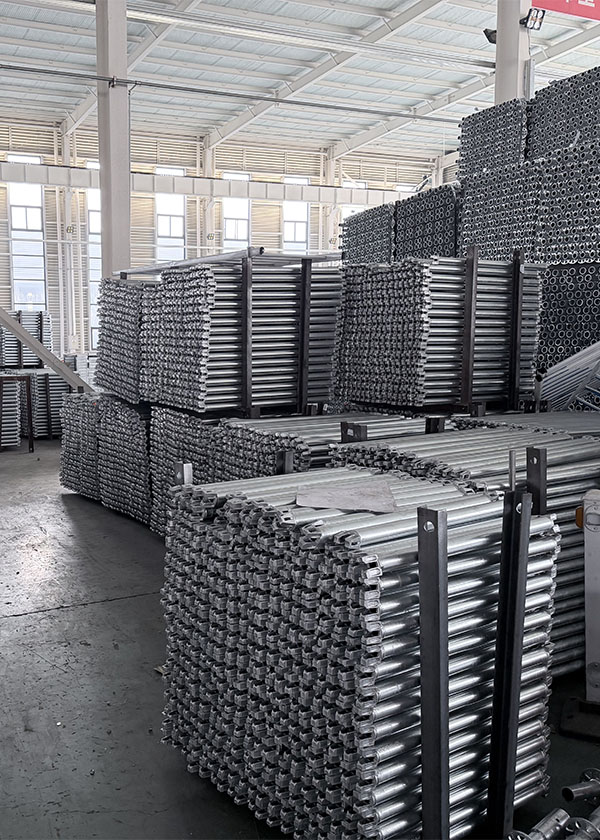

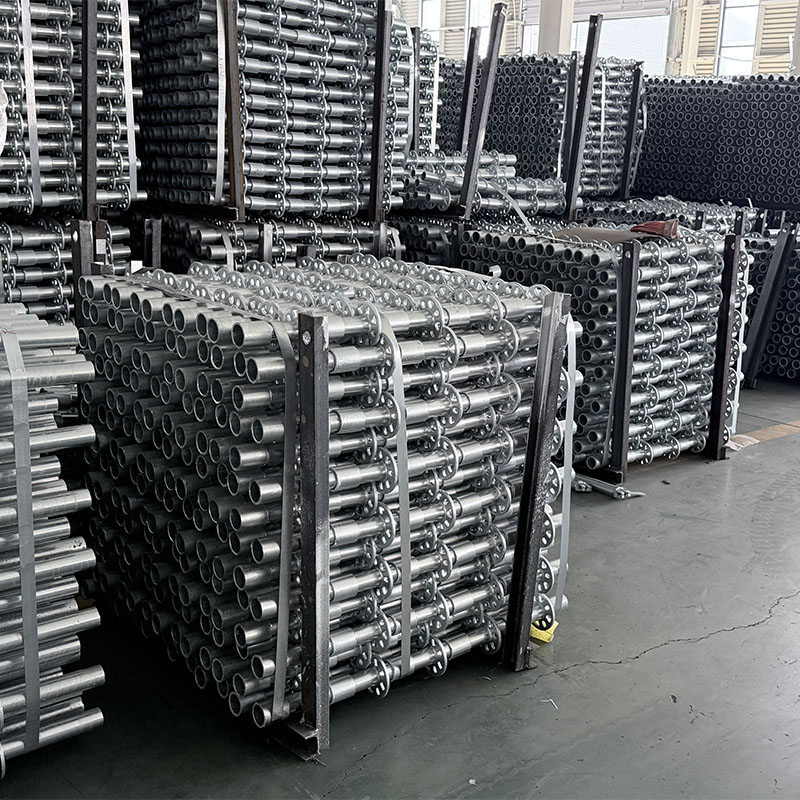

Transport Packaging
One-stop scaffolding export logistics support. Customized packaging, space-saving loading, multiple shipping methods (FCL/LCL/Door to Door). Reliable and cost-effective global delivery.
Get in Touch
Whether is a product enquiry or technical help, please send messager here, our team will respond within 24 hours
