Q235 Steel Scaffold Slant‑Support Diagonal Brace for Building Construction

Material

Fabricated from high‑grade Q235 carbon steel tube. Optional hot‑dip galvanized, painted or powder‑coated surface for anti‑rust and weather resistance for outdoor construction sites.

Load‑bearing Performance

High rigidity and compressive strength. Forms triangular force‑bearing structure together with standards and ledgers, effectively offsets lateral force and wind load, prevents scaffold sway and deformation, improves overall structural safety.

Application Scenarios

Fit for ringlock, kwikstage and frame scaffolding systems. Widely used for high‑rise exterior wall construction, building renovation, bridge works and large‑scale municipal temporary access projects.

Product details

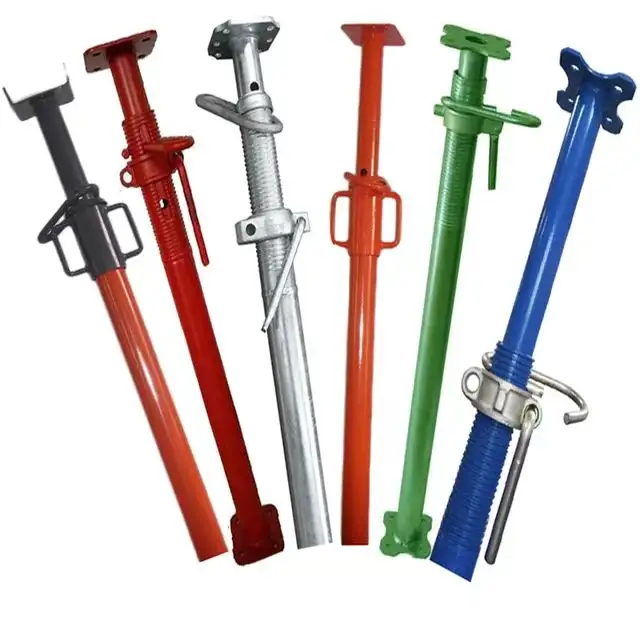

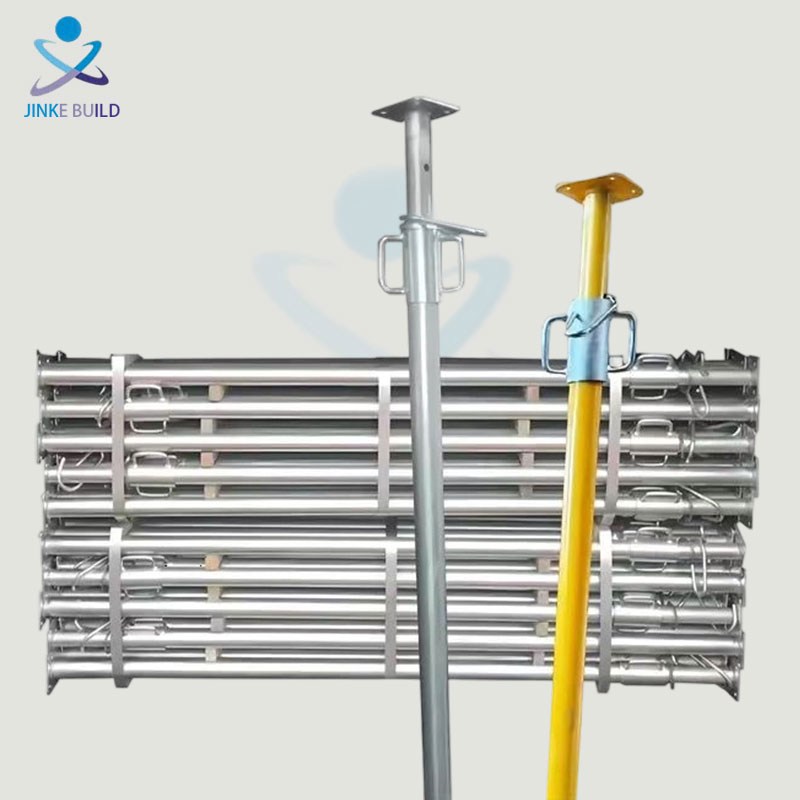

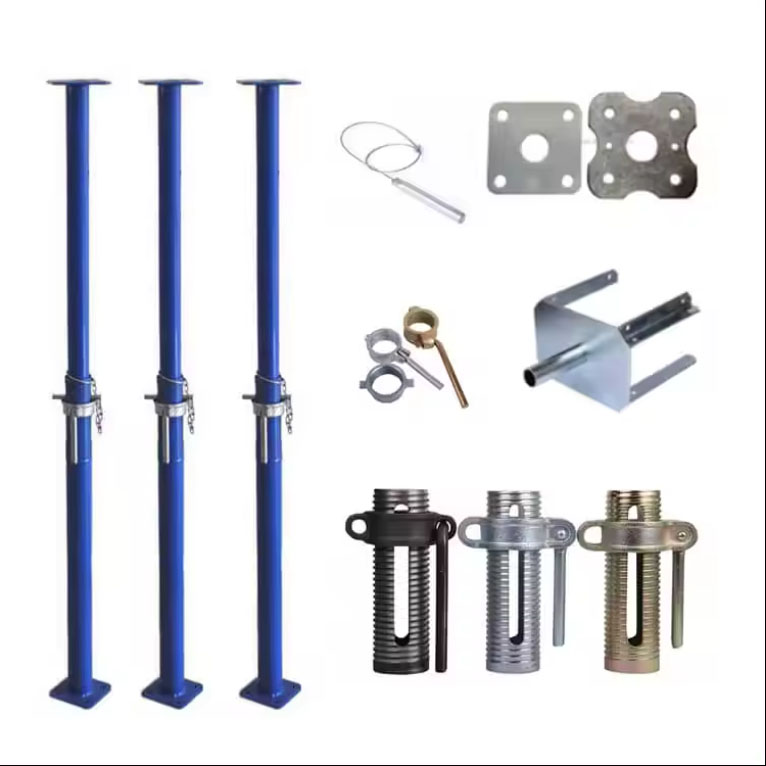

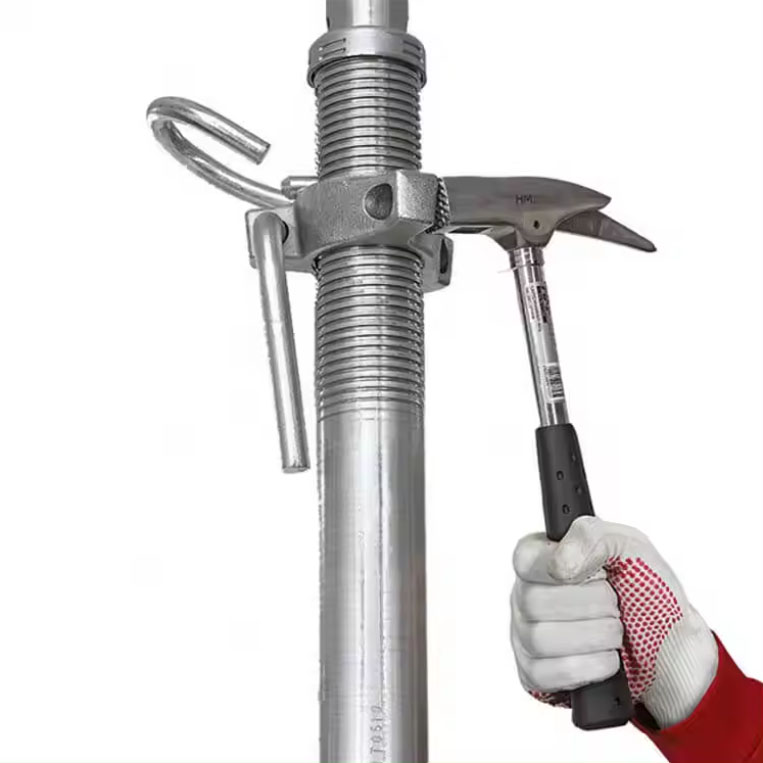

Structural details distinguish telescopic steel props from ordinary supports. Thickened threaded collar and safety lock pin fix height steadily, anti-slip square base plate prevents sliding on uneven ground. U-shaped top head fits beams and formwork tightly. Matched Scaffold slant support reinforces lateral stability for high load scenarios. Light weight and quick assembly cut setup time compared with bulky traditional scaffolding supports.

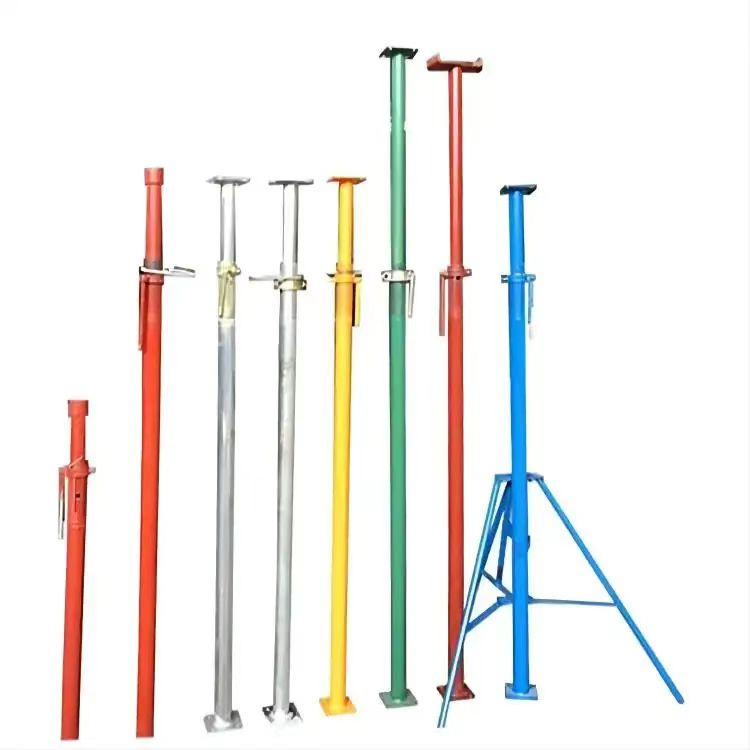

Product Specifications

Spaninsh perop
Adjustable Length	Out Tube	Lnner Tube	Wall Thickness
1600-3000mm	48mm	40mm	1.5-2.5
2000-3500mm	48mm	40mm
2200-4000mm	48mm	40mm
Surface Treatment	Painted,Power Coated,Electro Galvanized or Hot Dip Galvanized

ltalian prop
Adjustable Length	Out Tube	Lnner Tube	Wall Thickness
1600-3000mm	56mm	48mm	1.5-2.5
2000-3500mm	56mm	48mm
2200-4000mm	56mm	48mm
Surface Treatment	Painted,Power Coated,Electro Galvanized or Hot Dip Galvanized

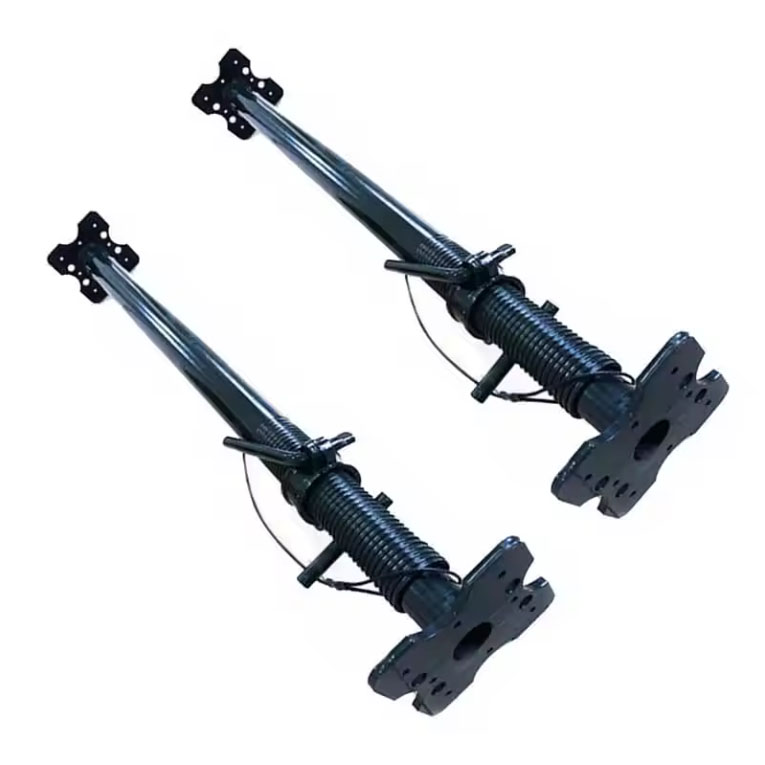

Middle East or German Prop
Adjustable Length	Out Tube	Lnner Tube	Wall Thickness
1600-3000mm	60mm	48mm	1.6-4.0
2000-3500mm	60mm	48mm
2200-4000mm	60mm	48mm
3000-5500mm	60mm	48mm
Surface Treatment	Painted,Power Coated,Electro Galvanized or Hot Dip Galvanized

Details & craftsmanship

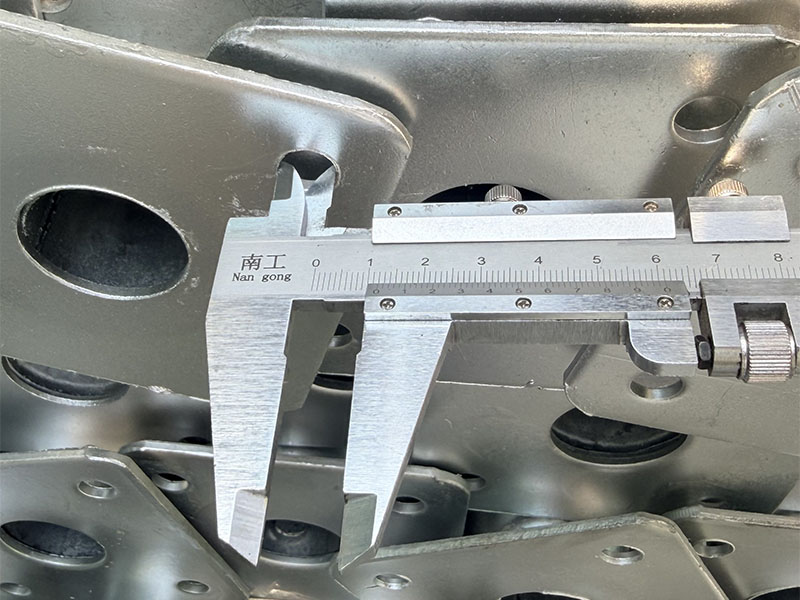

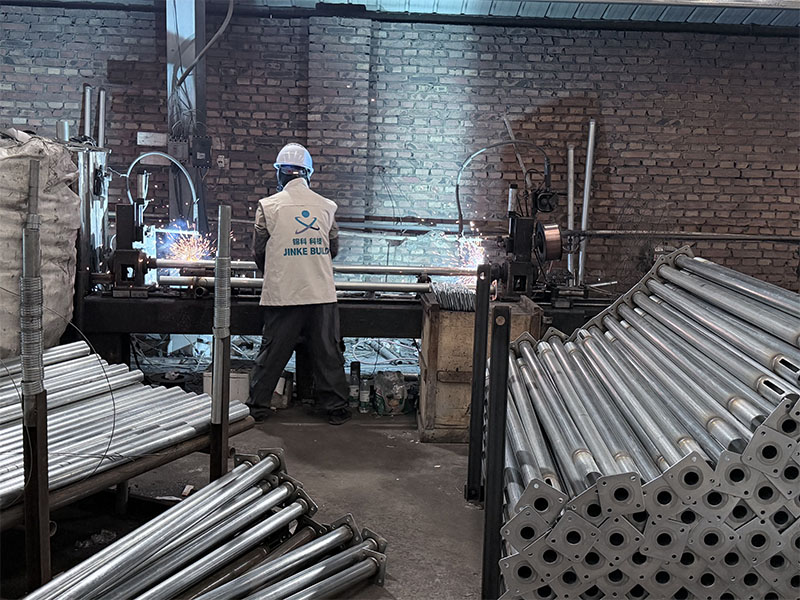

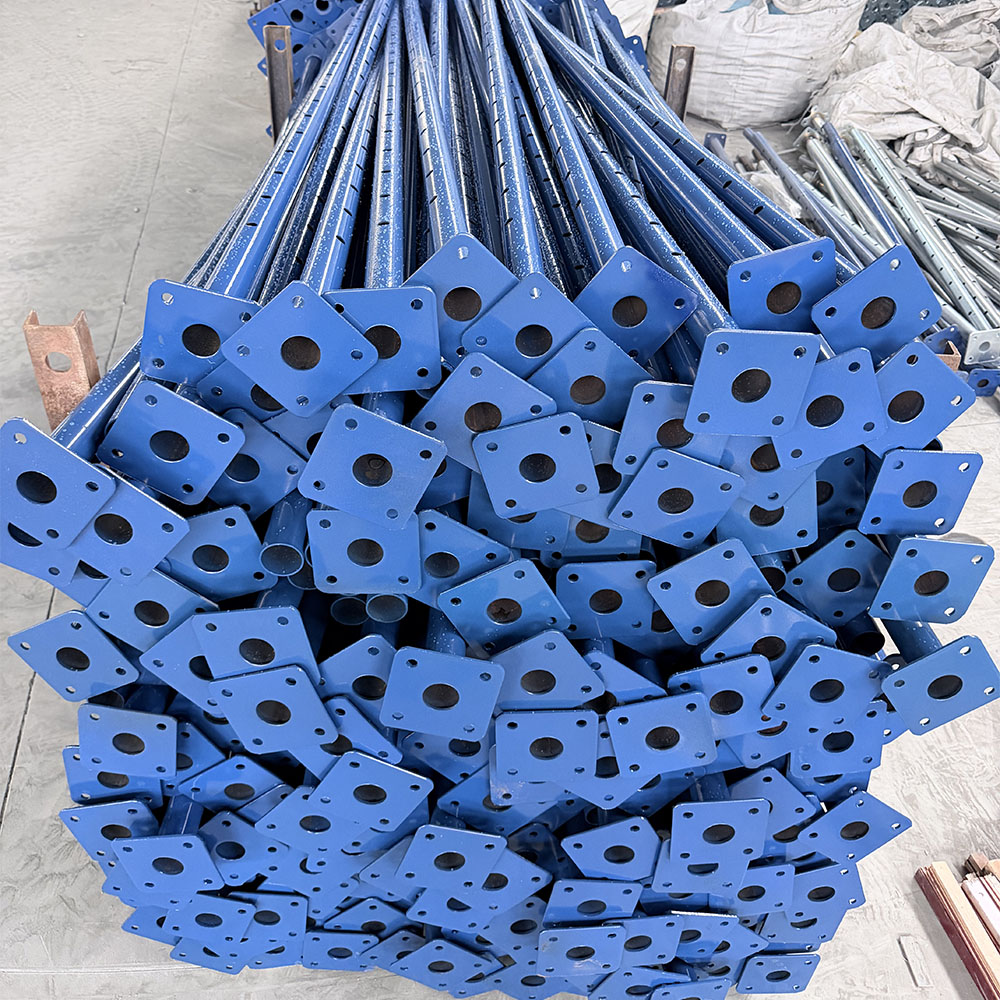

Standardized production lines control every processing link. Raw steel tube inspection precedes CNC precision cutting, automated full penetration welding for top and bottom base plates. Thread rolling delivers smooth height adjustment sleeves, followed by rust-proof surface treatment. Finished shoring prop undergoes static load pressure test and dimensional recheck before warehouse storage, consistent with global scaffolding safety norms.

Compliance & Certification

Shoring prop batches carry full certification documents: CE EN1065, ISO9001, SGS and Intertek test reports. Specifications comply with construction safety codes of Peru, Chile, EU and Middle Eastern markets. JinKe Technology accepts OEM drawing customization, stable bulk shipment and pallet packaging for global scaffolding distributors.

Typical application scenarios

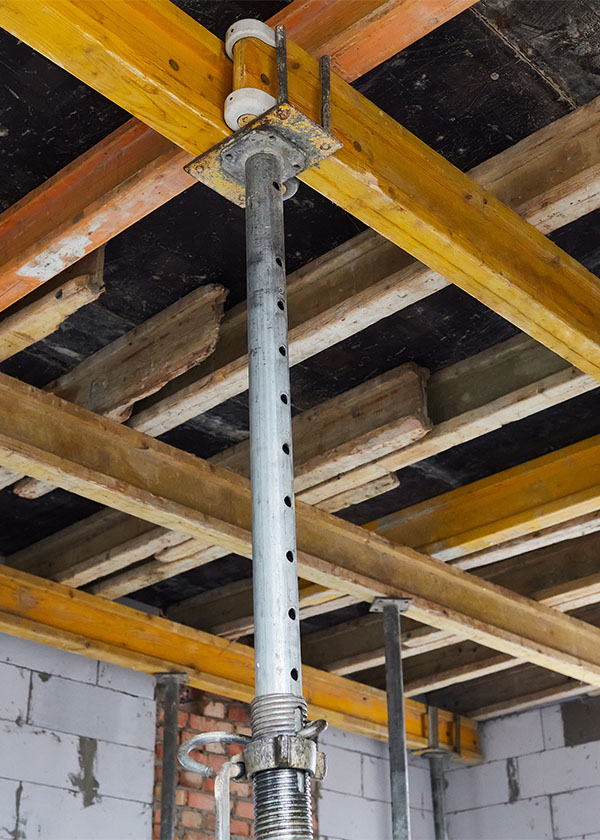

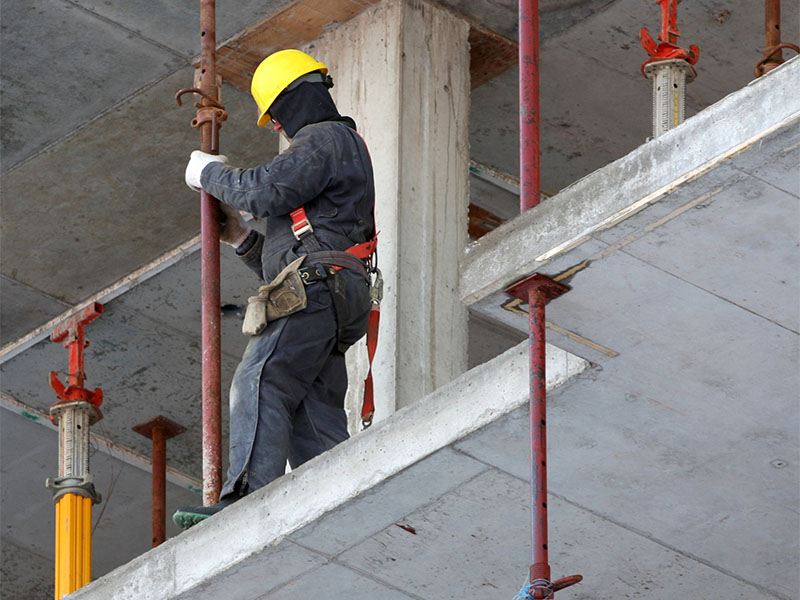

Wide application coverage includes concrete slab shoring, beam formwork reinforcement, wall temporary bracing, bridge renovation and industrial building maintenance. Telescopic steel props coordinate with ringlock, frame scaffolding systems to form integrated formwork support network.

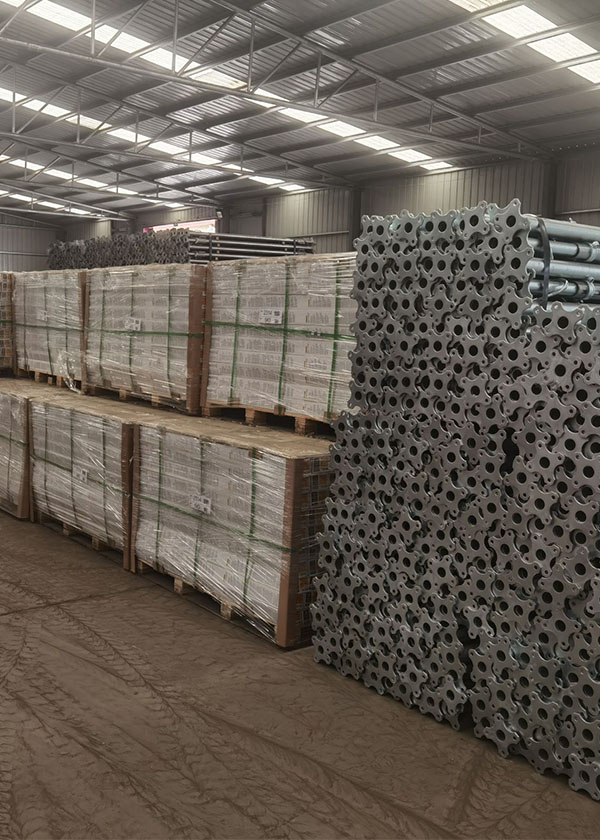

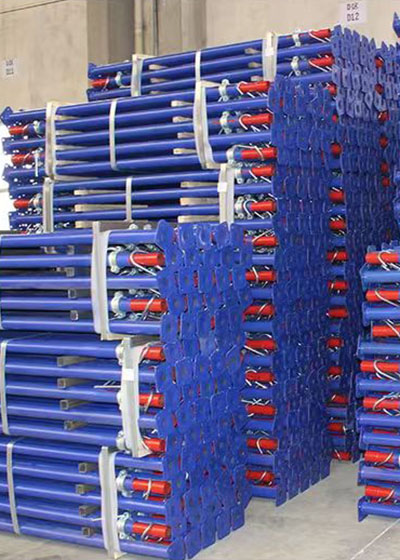

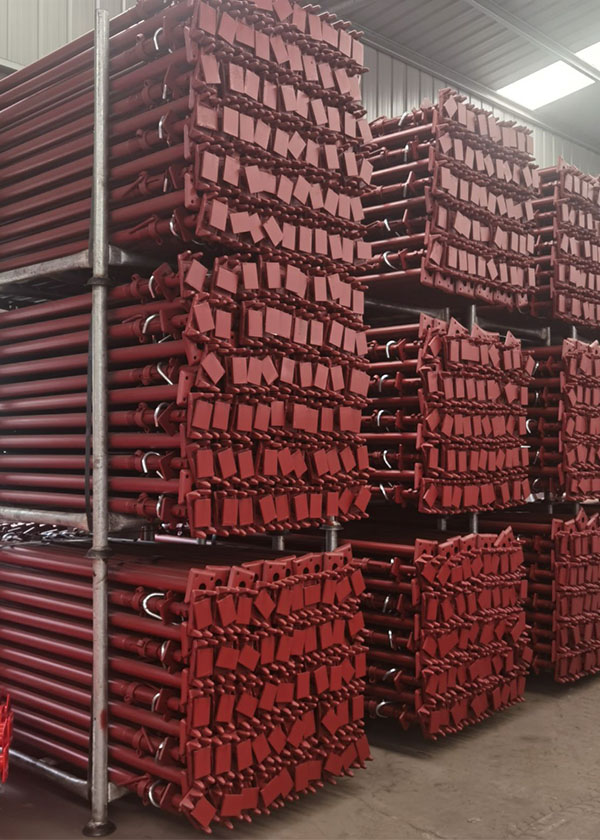

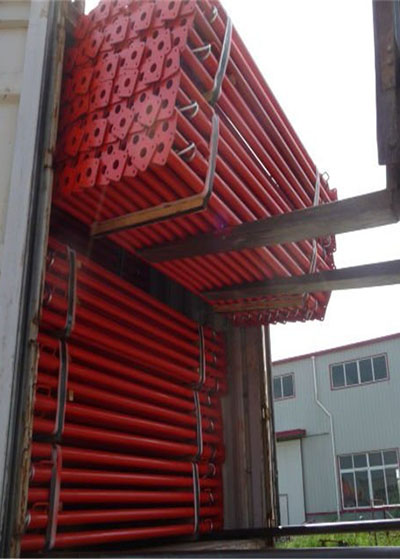

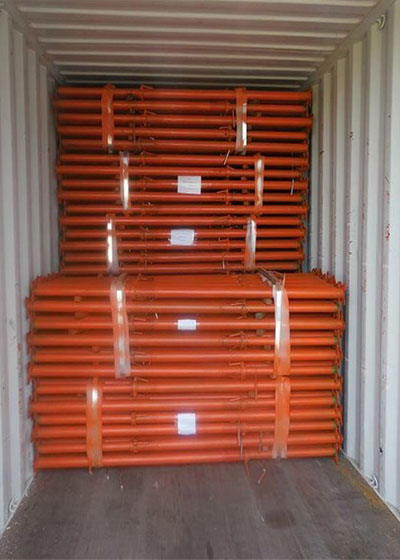

Transport Packaging

One-stop scaffolding export logistics support. Customized packaging, space-saving loading, multiple shipping methods (FCL/LCL/Door to Door). Reliable and cost-effective global delivery.
