ZLP Series Suspended Platform | High-Safety Construction Scaffolding from JinKe Technology
Product details

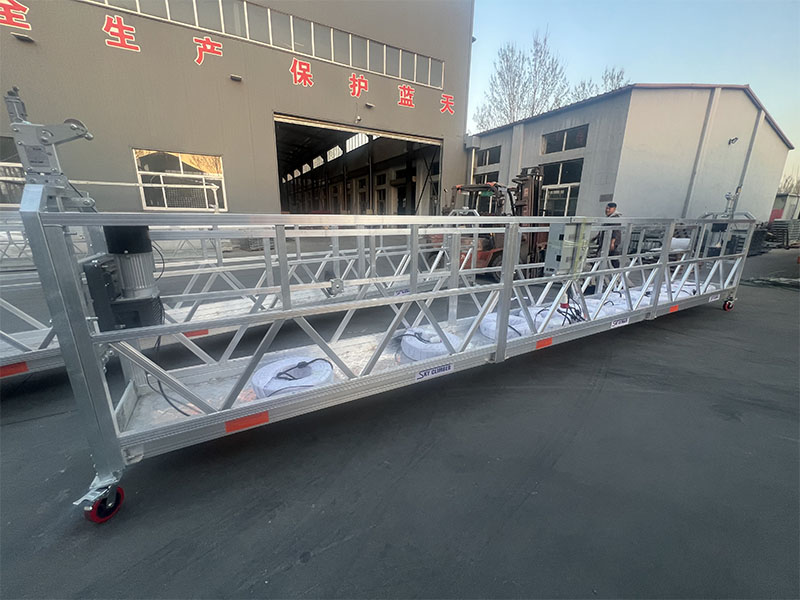

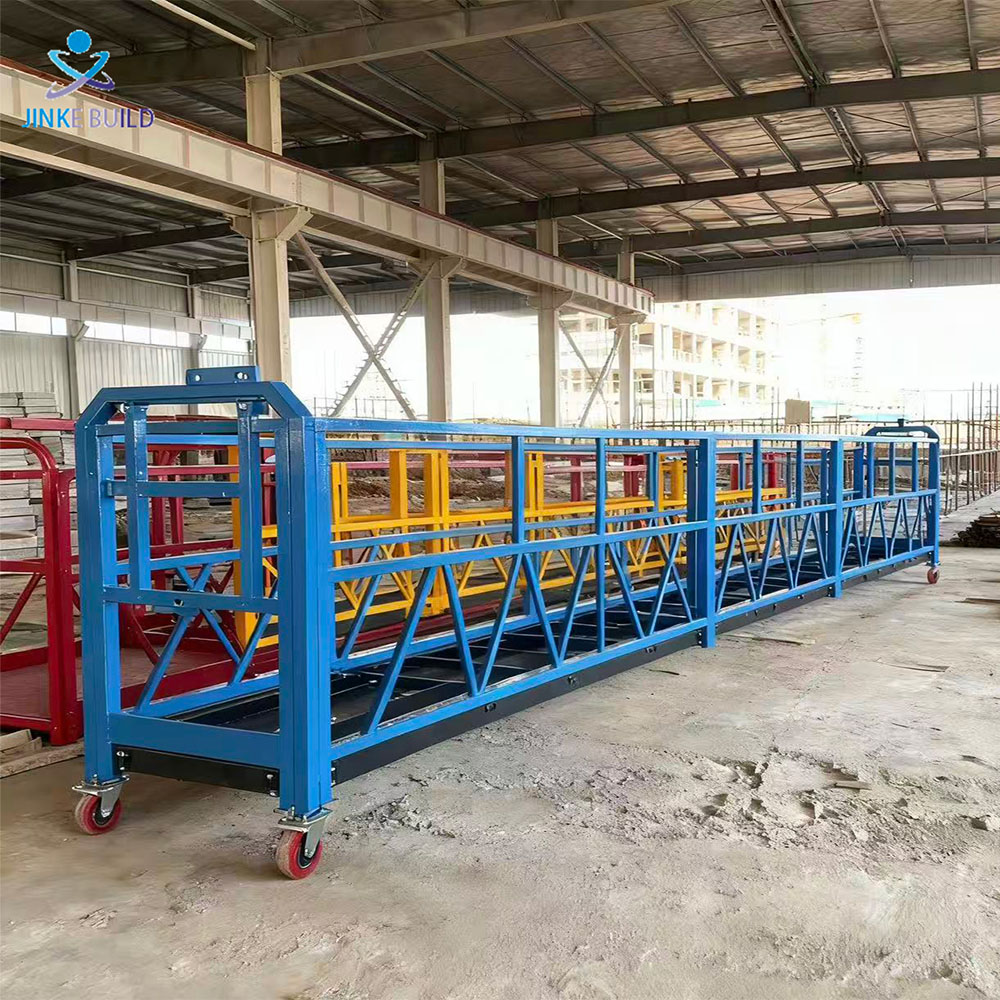

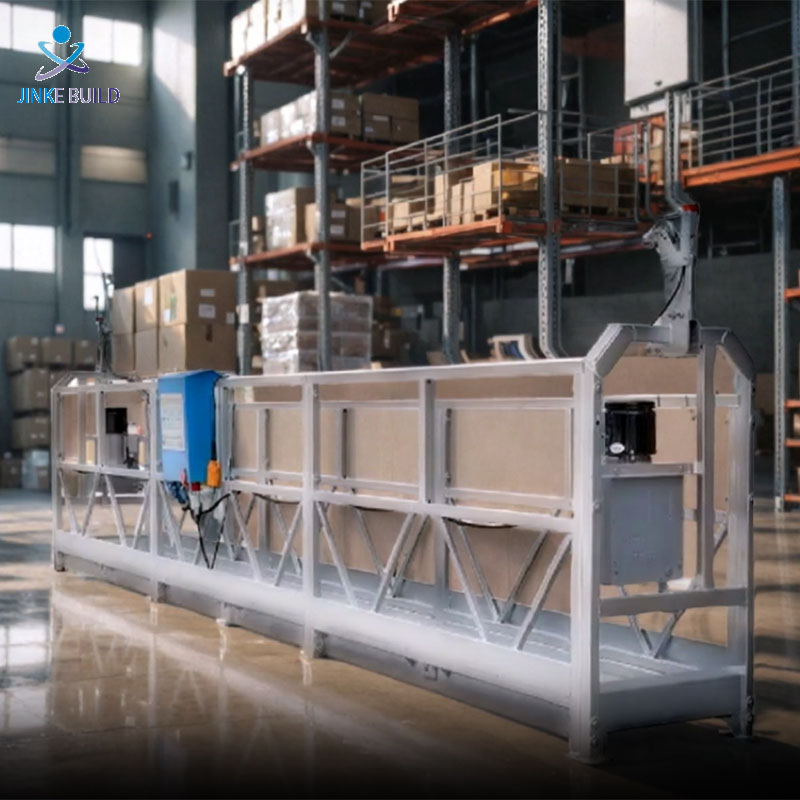

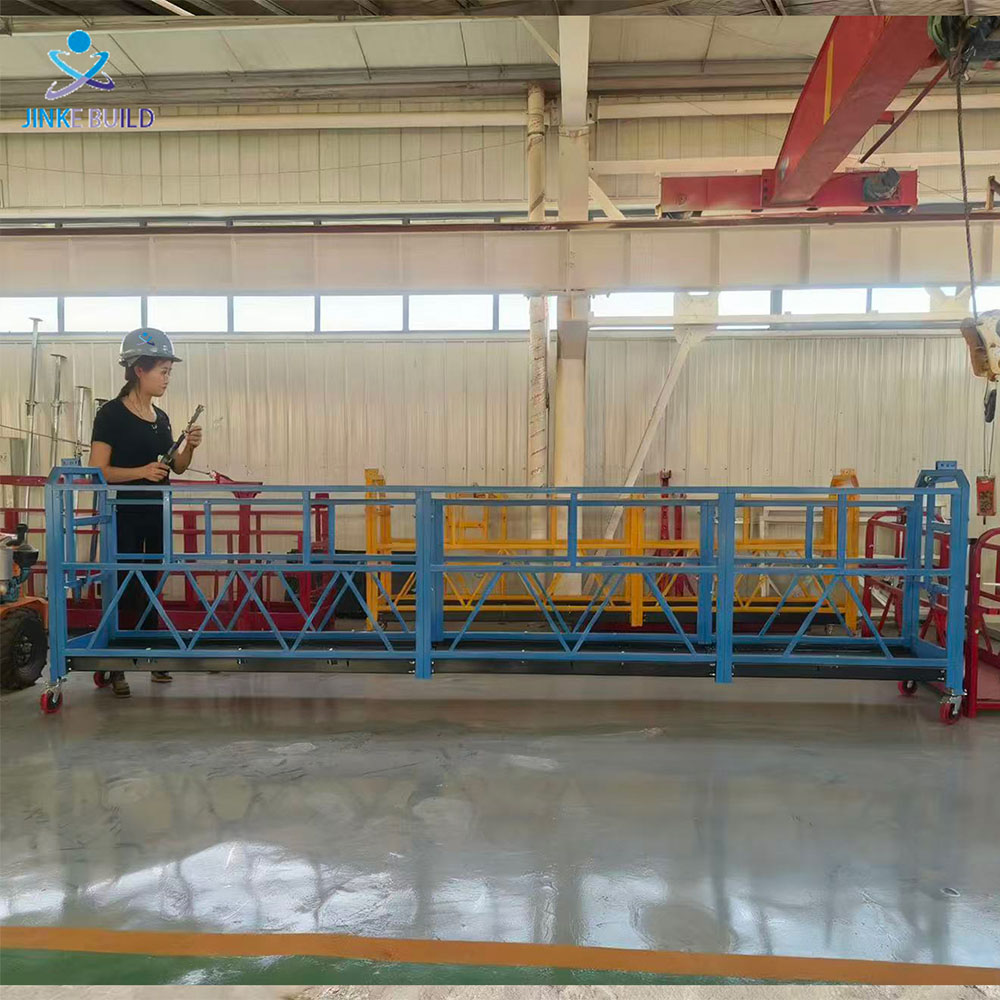

Core scaffolding equipment from JinKe Technology under Minjie Steel. ZLP suspended platform uses Q235 galvanized steel and optional aluminum alloy frames. Main models ZLP630, ZLP800, ZLP1000 support splicable 2–6m platform sizes, custom dimensions available. Target users cover construction contractors, facade maintenance crews and engineering teams. This suspended scaffolding stands up to coastal salt spray, high temperature and dusty outdoor environments across South America, Middle East and Southeast Asia.
Product Specifications
|
Model |
ZLP1000 |
ZLP800 |
ZLP630 |
zlp250 |
|
Rated load capacity (kg) |
1000 |
800 |
630 |
250 |
|
Lifting/lowering speed (m/min) |
8-10 m/min |
8-10 m/min |
9-11 m/min |
14m/min |
|
Rated power of the hoist (kW) |
2.2*2 |
1.8*2 |
1.5*2 |
1.5*1 |
|
Hoist Model |
LTD100 |
LTD80 |
LTD63 |
/ |
|
Safety lock model |
LSF30 (permissible impact force 30KN), the lock cylinder varies depending on the model. |
|||
|
Safety lock locks cable angle |
3°~8° |
/ |
||
|
Wire rope diameter (mm) |
10.2 |
9.1 |
8.3 |
8.3 |
|
Operating voltage (V/HZ) |
220V/380V,50Hz/60Hz,Single-phase electricity/Three electric |
220V/60Hz |
||
|
Platform length (m) |
2.5+2.5+2.5m |
2.5+2.5+2.5m |
1.5+2+2.5m/2+2+2m |
/ |
|
Platform width (m) |
0.69m |
/ |
||
|
Platform height (m) |
The operating surface height is 1.08m, and the rear surface height is 1.18m. |
/ |
||
|
Weight (excluding counterweight) (kg) |
900 |
800 |
700 |
48 |
Product advantages

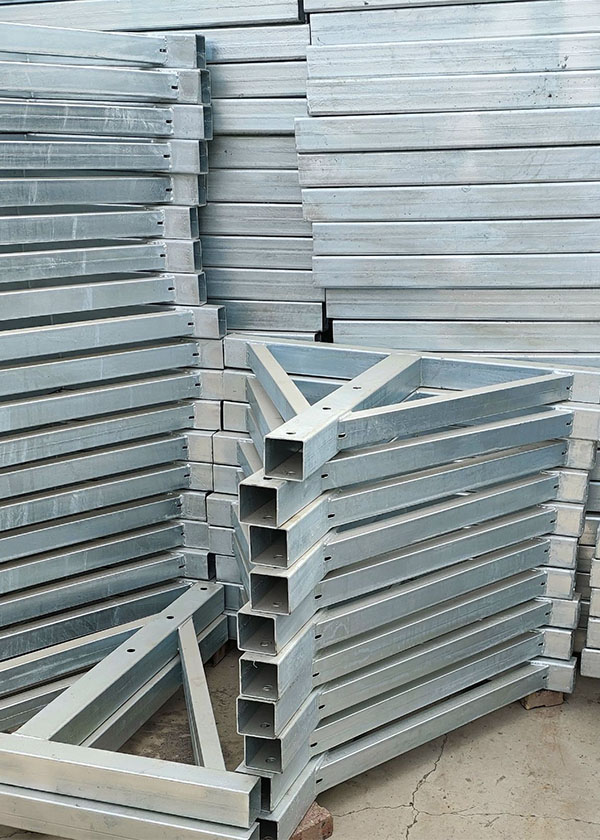

Standardized production workflows run through every finished unit: raw material inspection, structural stress calculation, robotic full penetration welding, non-destructive weld testing, hot galvanizing anti-rust treatment and 125% overload safety test before shipment. Every suspended platform receives full quality monitoring to meet global scaffolding safety standards.
Details & craftsmanship

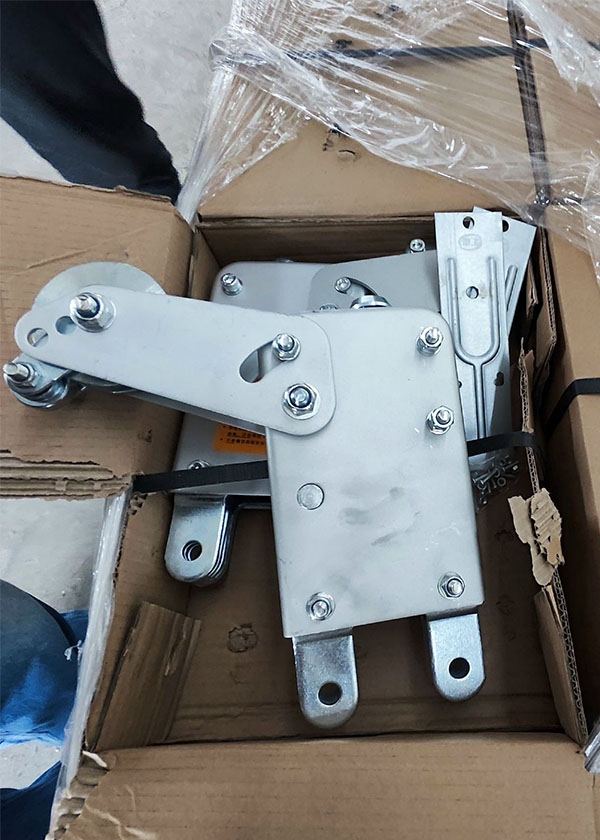

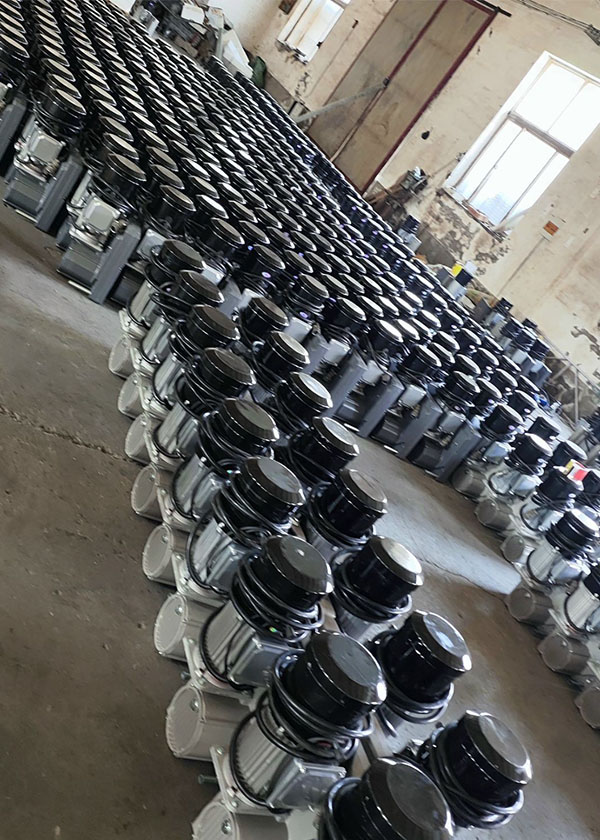

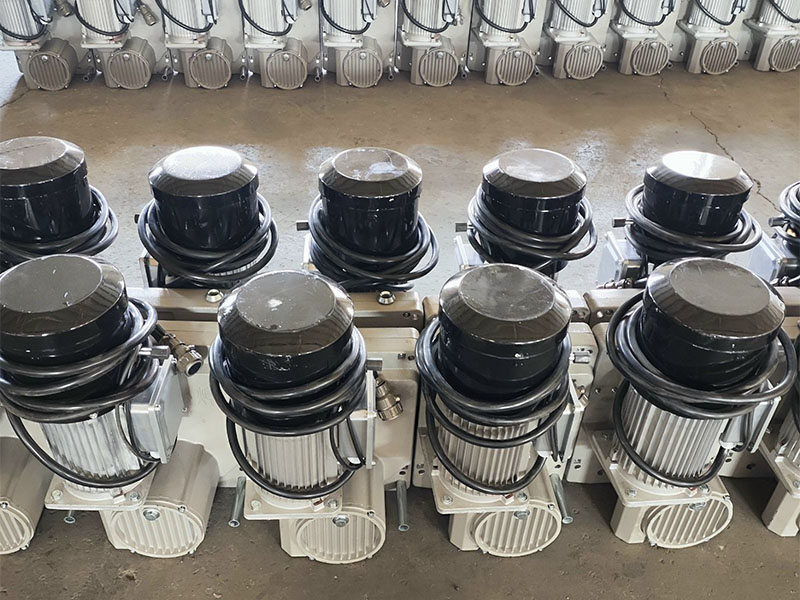

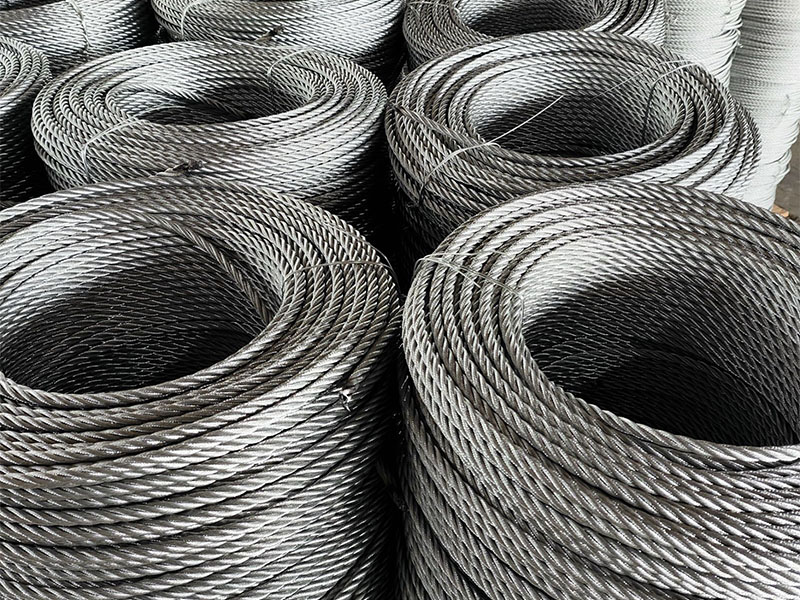

Complete safety configurations mark ZLP suspended scaffolding: dual anti-fall safety locks, emergency manual lowering structure, travel limit switches, anti-slip floor panels and reinforced surrounding guardrails. Thick high-tensile steel wire ropes and stable lifting motors deliver steady vertical operation, better than traditional tube scaffolding for high-rise construction tasks.
Compliance & Certification

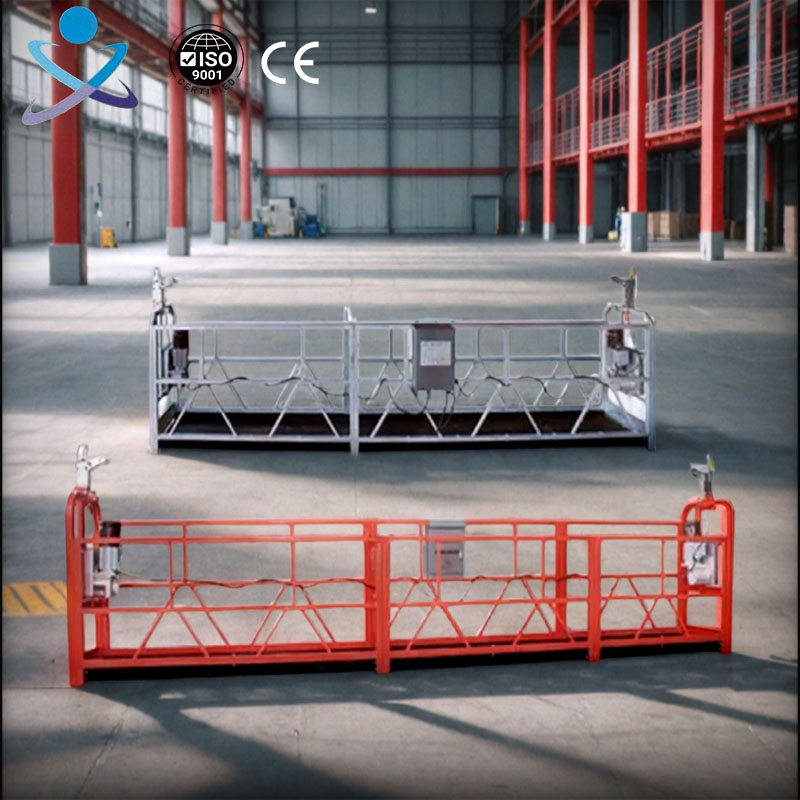

Suspended scaffolding units carry global authoritative credentials: CE, ISO9001, SGS and Intertek factory inspection reports. Products satisfy safety codes for Peru, Chile, EU, Middle East and African regions. Minjie Steel factory strength and 20-year scaffolding manufacturing experience back JinKe Technology’s OEM drawing customization, large-volume stable supply and convenient ocean transport via Tianjin Port for international buyers.
Typical application scenarios
- Wide applicable scenarios cover high-rise wall painting, curtain wall installation, bridge maintenance, ship repair and industrial tank overhaul. ZLP630, ZLP800 and ZLP1000 suspended platforms replace heavy tube scaffolding, lower labor expenditure and shorten overall construction cycles.

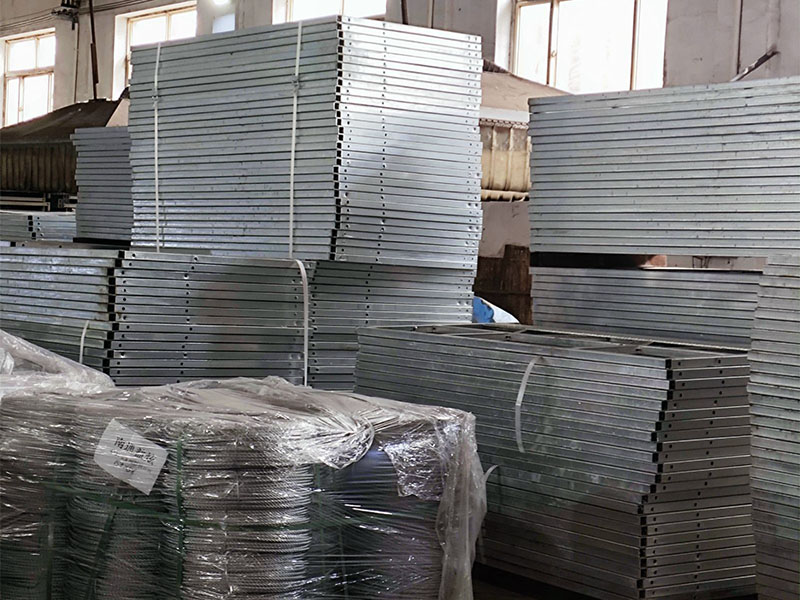

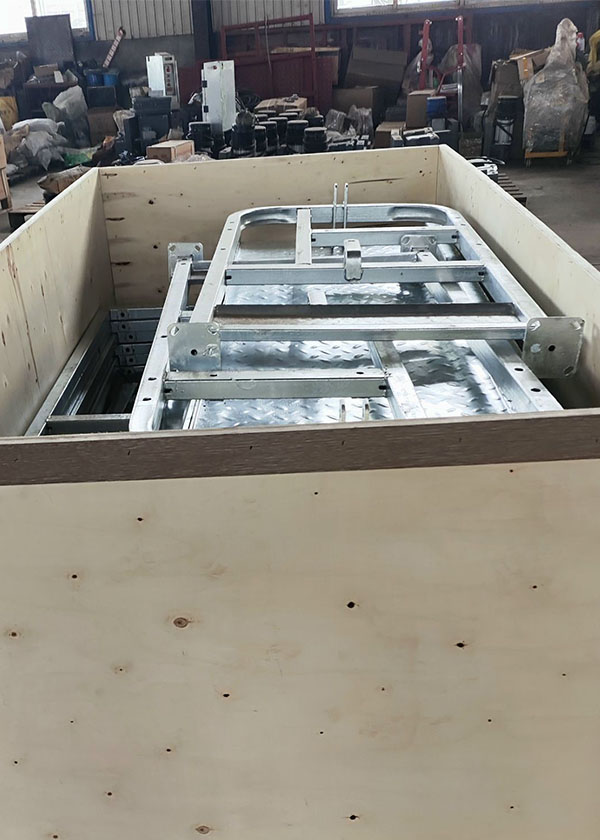

Transport Packaging

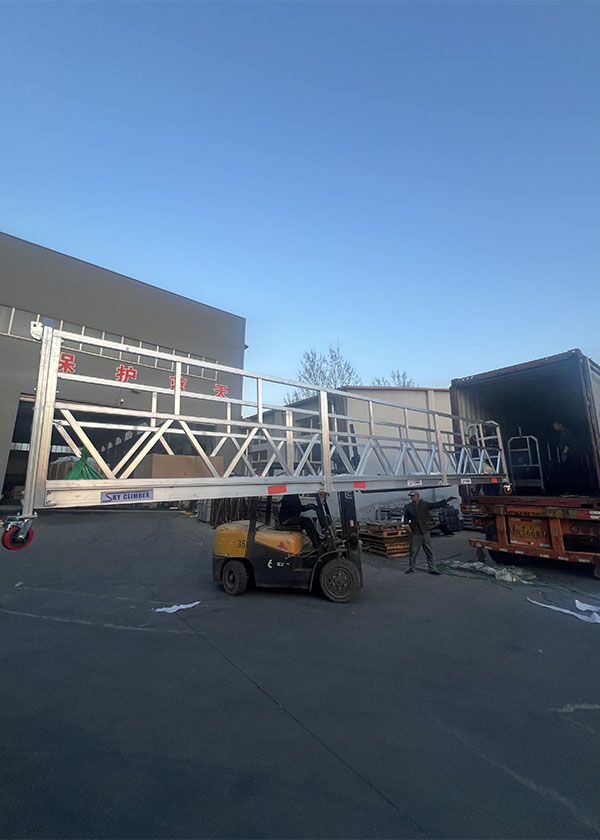

One-stop scaffolding export logistics support. Customized packaging, space-saving loading, multiple shipping methods (FCL/LCL/Door to Door). Reliable and cost-effective global delivery.
Get in Touch
Whether is a product enquiry or technical help, please send messager here, our team will respond within 24 hours
