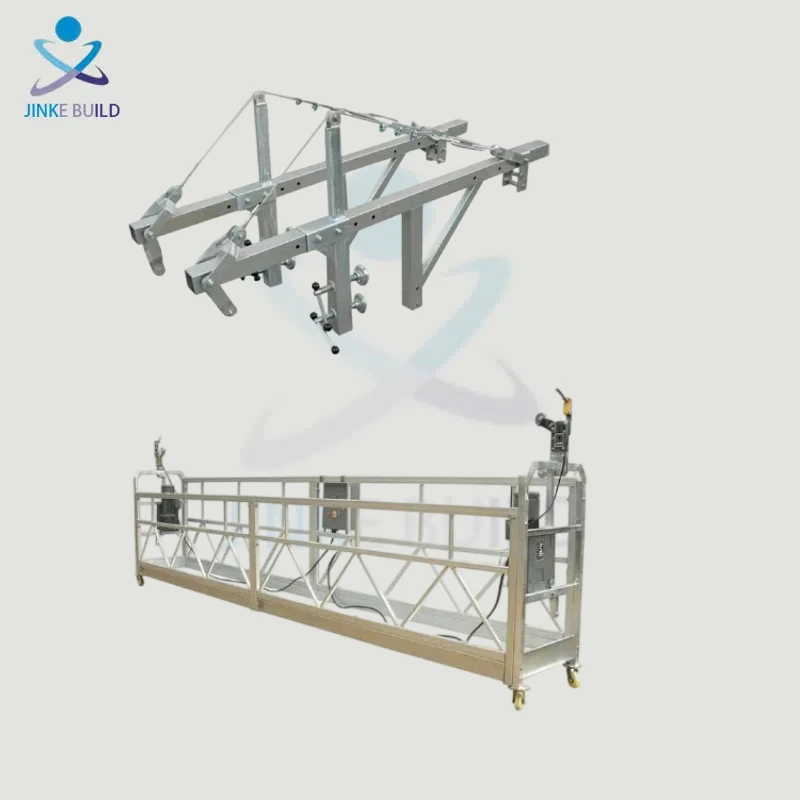

Recommended Model |

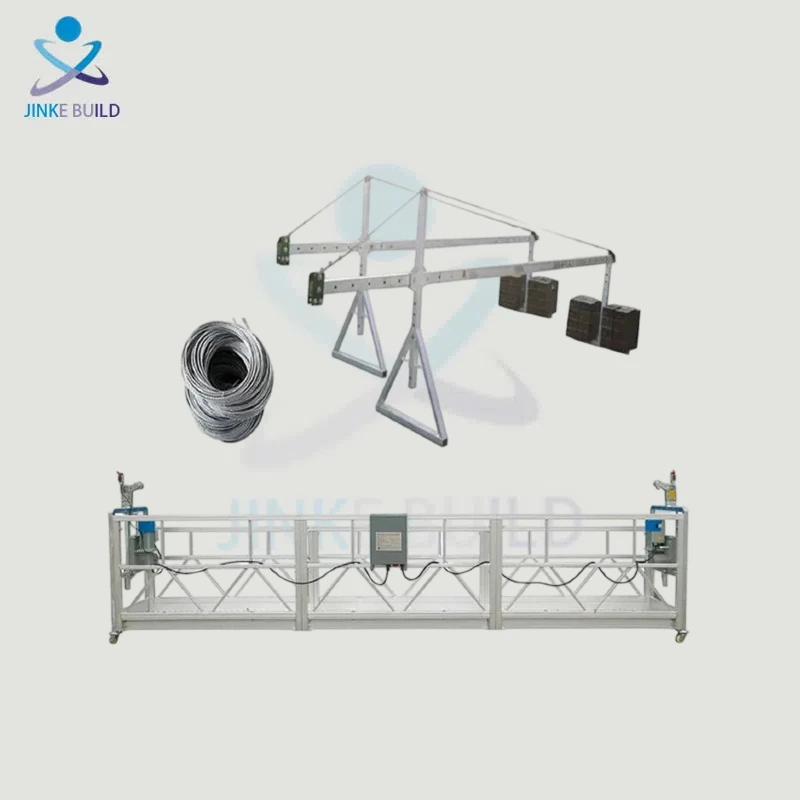

ZLP630 ZLP800 Suspended Platform Parameter |
||||||||||
1 |
Model |
ZLP630 |
ZLP800 |
||||||||
2 |
Rated load |
630kg |
800kg |
||||||||
3 |
Lifting speed |
9.3+0.5 m/min |
8.0+0.5 m/min |
||||||||

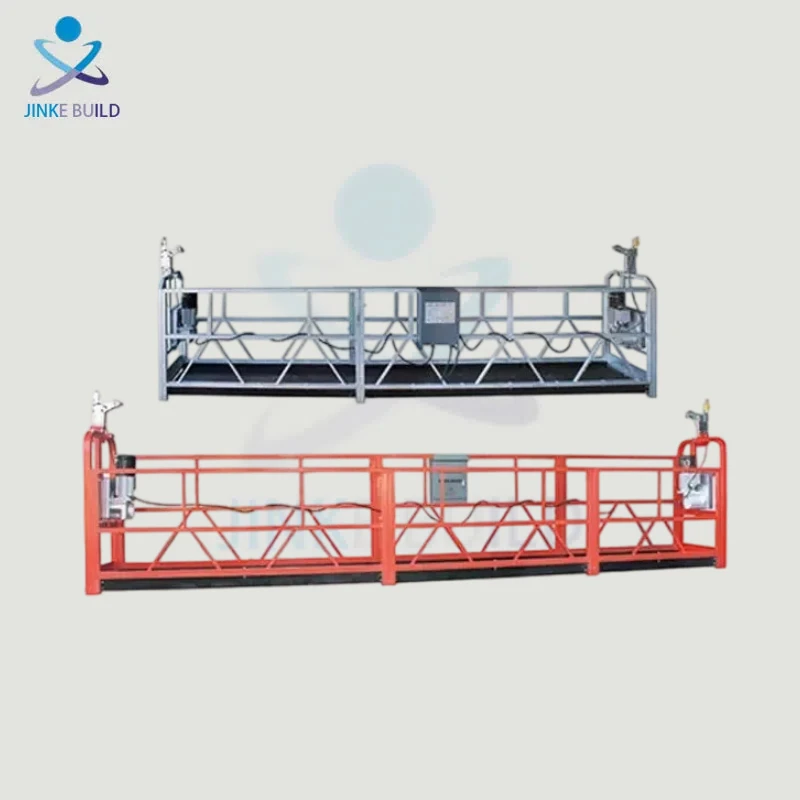

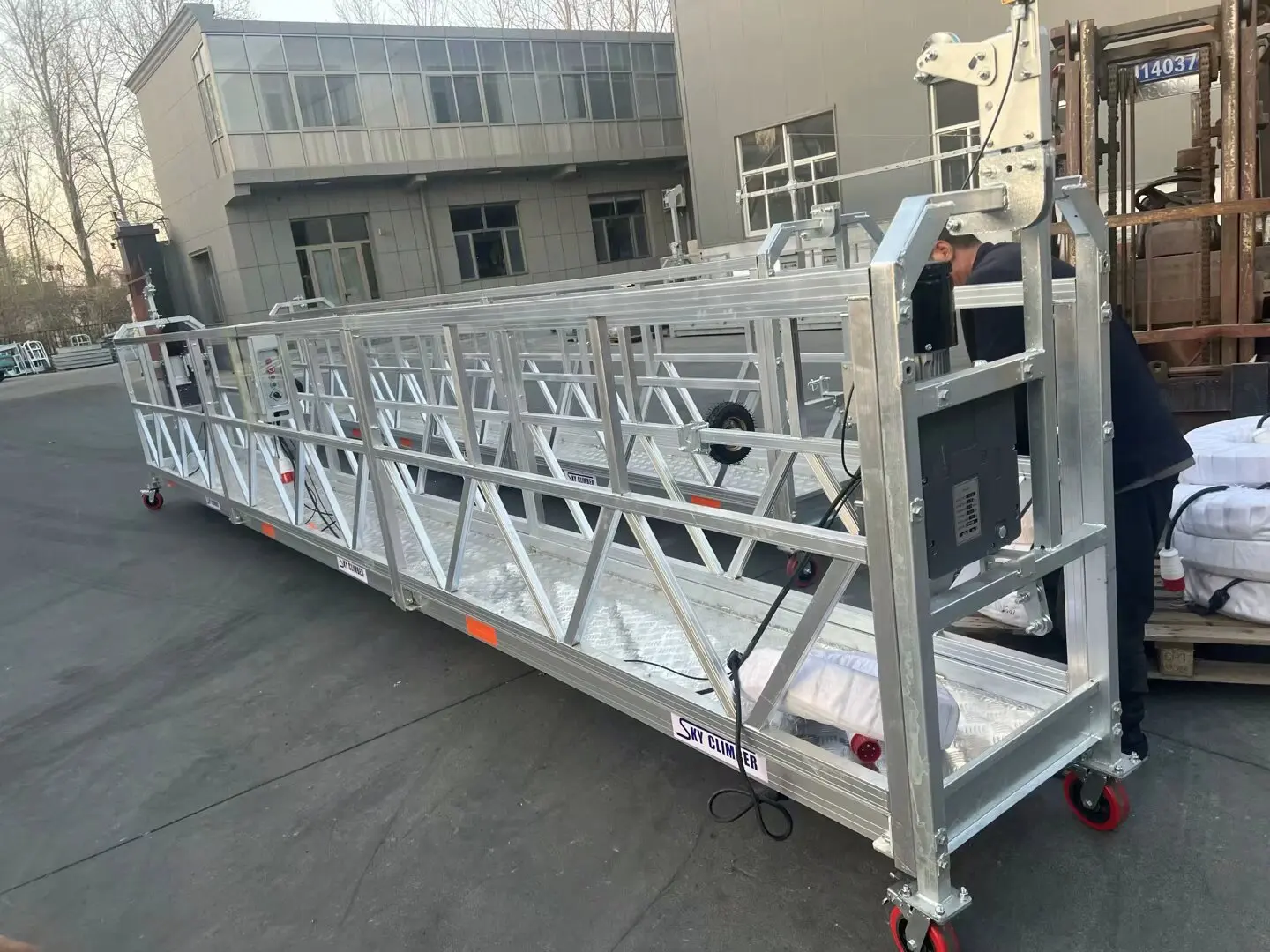

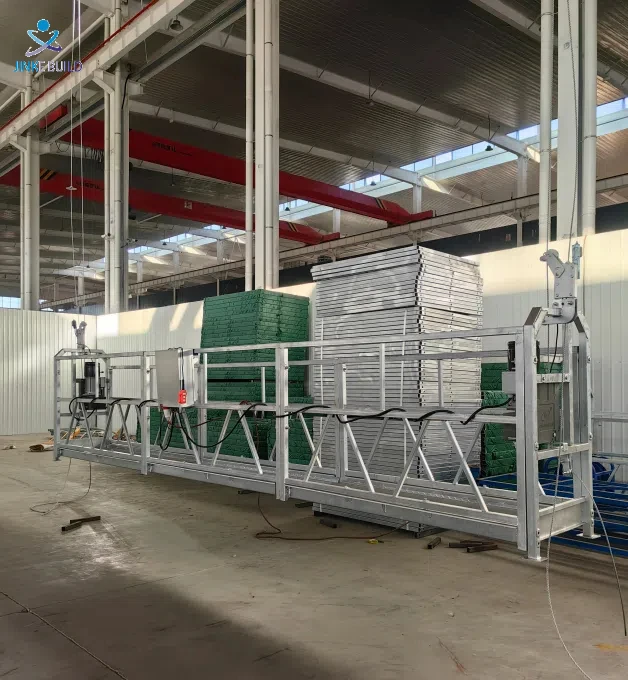

Working Platform |
Working Cage*1 Set |
Dimension L×W×H(m) |
6m(2+2+2)×0.69×1.18m |
7.5m(2.5+2.5+2.5)×0.69×1.18 |
|||||||
Material |
Q235 Steel or Aluminum Alloy |
Q235 Steel or Aluminum Alloy |
|||||||||
Surface |
Painting/HDG/Aluminum Alloy |
Painting/HDG/Aluminum Alloy |
|||||||||
Bottom Wheels |
4 pcs |
4 pcs |
|||||||||
Wall Roller |
2 pcs |
2 pcs |
|||||||||
Hoist*2 sets |
Model |
LTD6.3 |
LTD8.0 |
||||||||
Lifting Speed |
9.3±0.5 m/min |
9.3±0.5 m/min |
|||||||||
Pulling power |
6.3KN |
8.0KN |
|||||||||
Quantity |
2pcs |
2pcs |
|||||||||
Power |
1.5 kw*2 |
1.8 kw*2 |
|||||||||
Voltage |
380v/50Hz or 220V/60HZ |
380v/50Hz or 220V/60HZ |
|||||||||
Rotational speed |
1420 rpm |
1420 rpm |
|||||||||
Braking Torque |
15N.m |
15N.m |
|||||||||
Safety Lock*2 sets |
Model |
LSG20 |
LSG30 |
||||||||
Locking Rope Angle |
3°~8° |
3°~8° |
|||||||||
Allow impulsive force |
20 KN |
20 KN |
|||||||||
Steel Wire Diameter |
8.3mm |
9.1mm |
|||||||||
Electric Cabinet |
Component Brand |
CHNT |
CHNT |
||||||||
Surface |
Galvanized |
Galvanized |
|||||||||

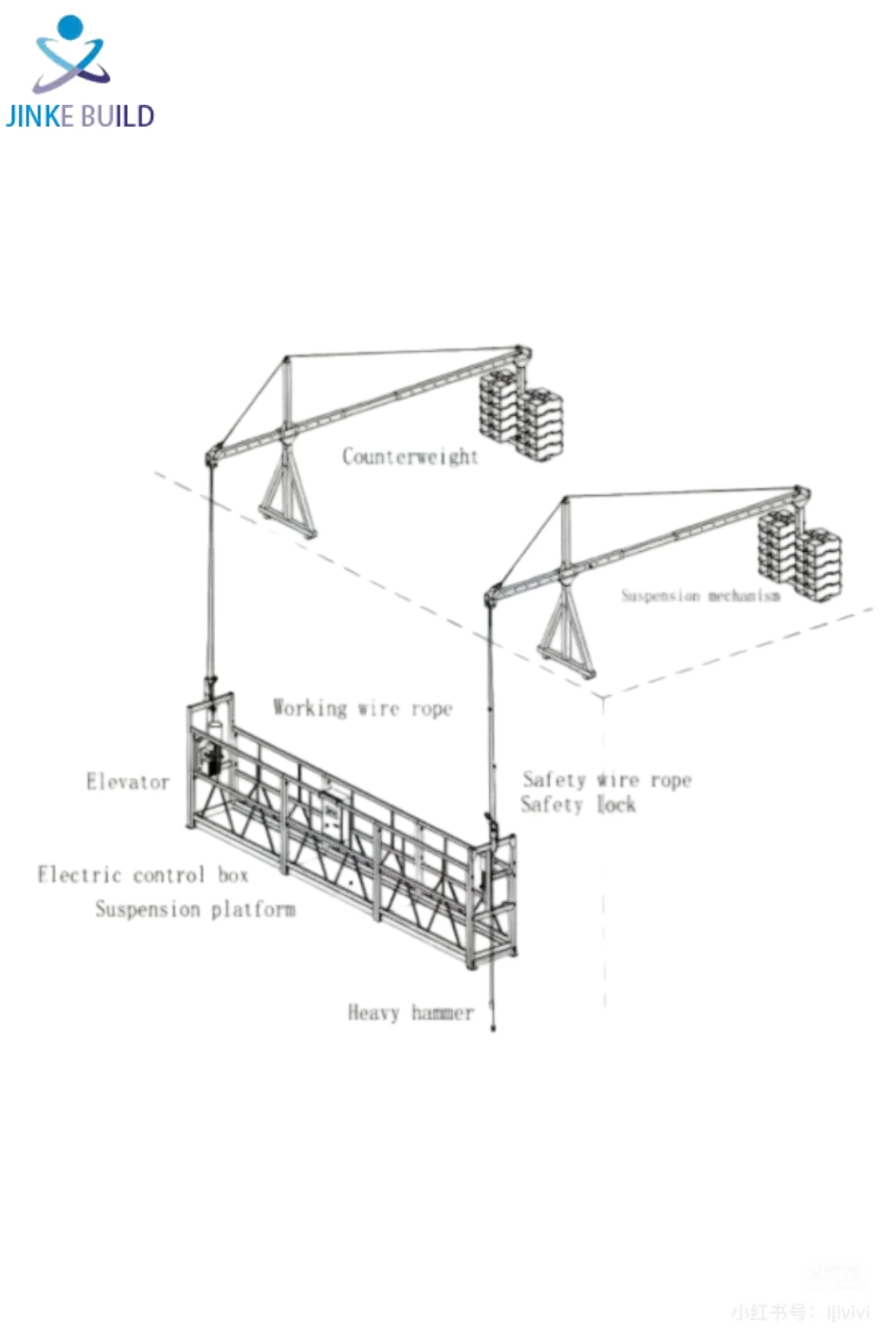

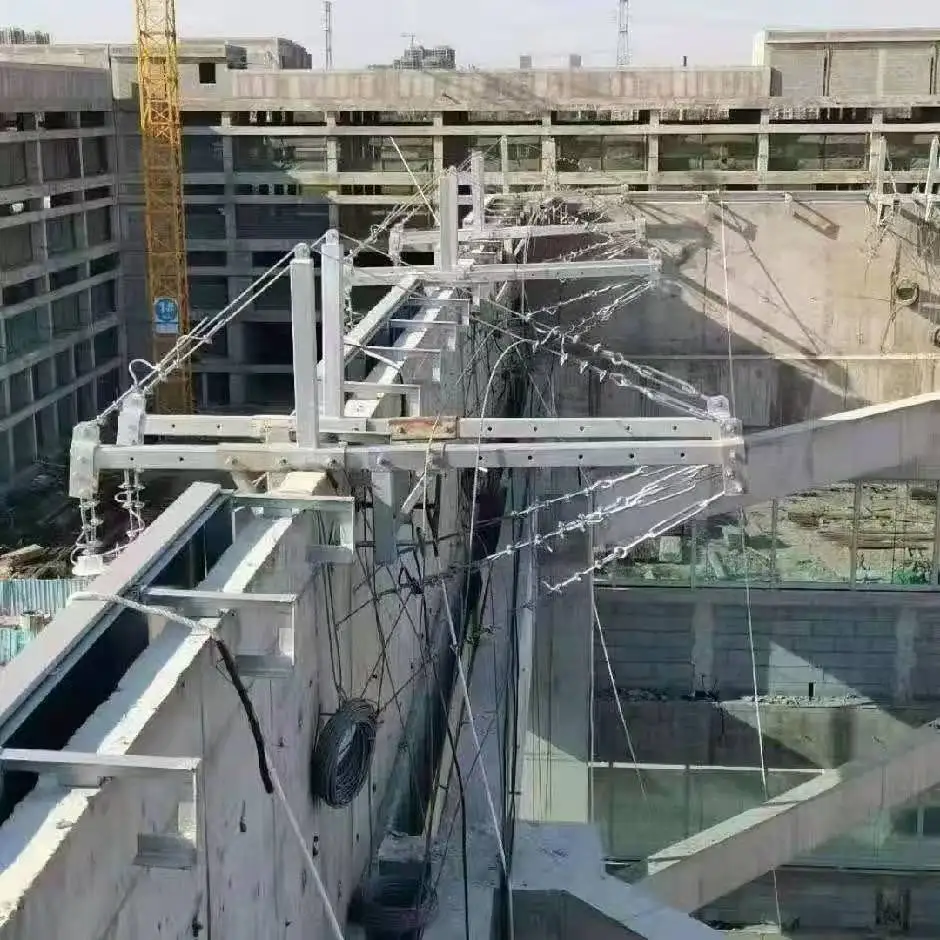

Suspension Mechanism |
2 Sets |
Front beam overhanging |
1.3~1.6 m |
1.3~1.6 m |
|||||||
Beam adjustable height |
1.06~1.66 m |
1.06~1.66 m |
|||||||||
Surface |
Painting or HDG |
Painting or HDG |
|||||||||
Electric Cable |
l set |
Length |
100 m |
100 m |
|||||||

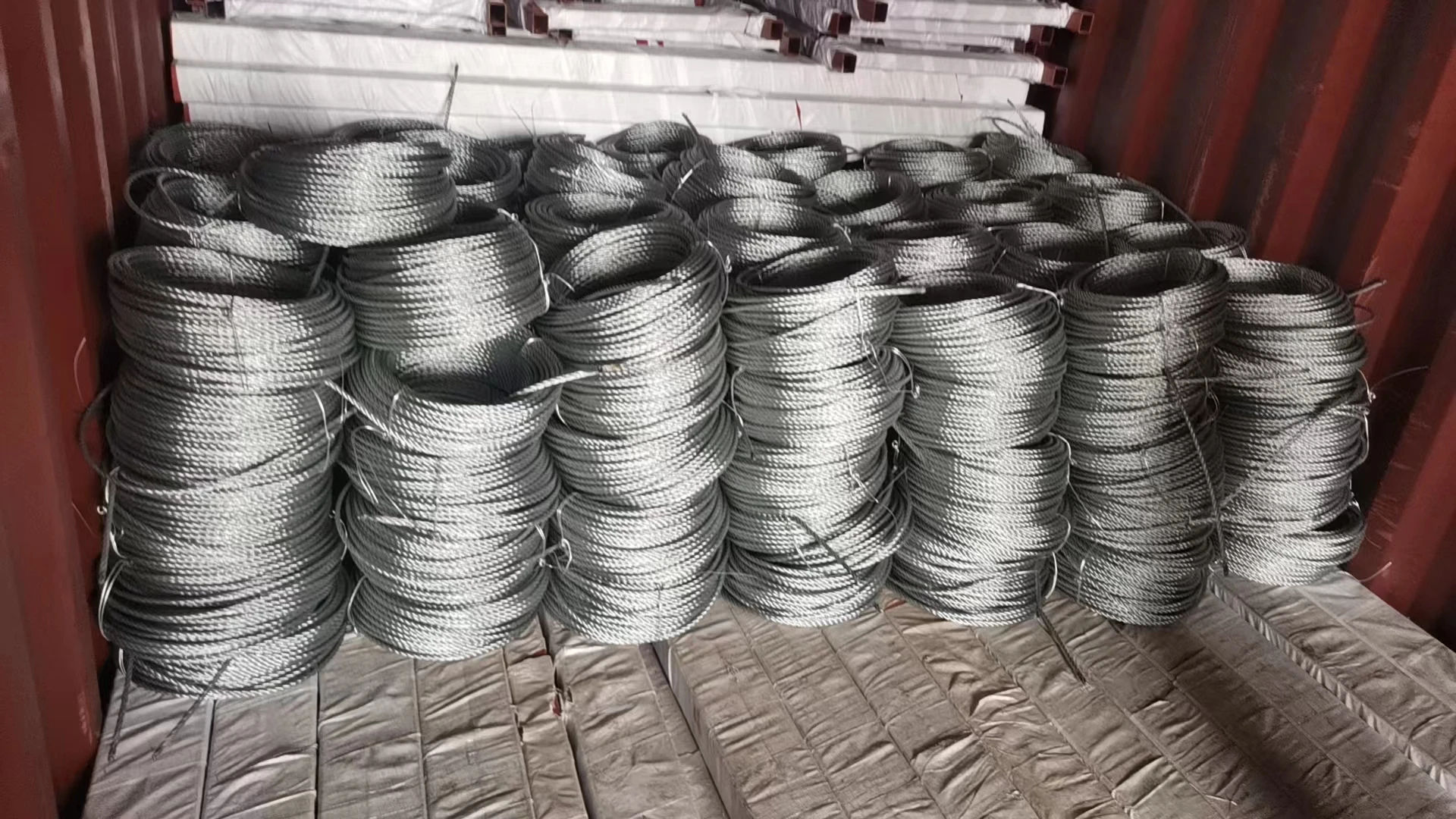

Steel Wire Rope |
4 Sets |
Diameter |
8.3mm |
9.1mm |
|||||||
Safety Rope |
l set |
l set |
18mm |
18mm |
|||||||

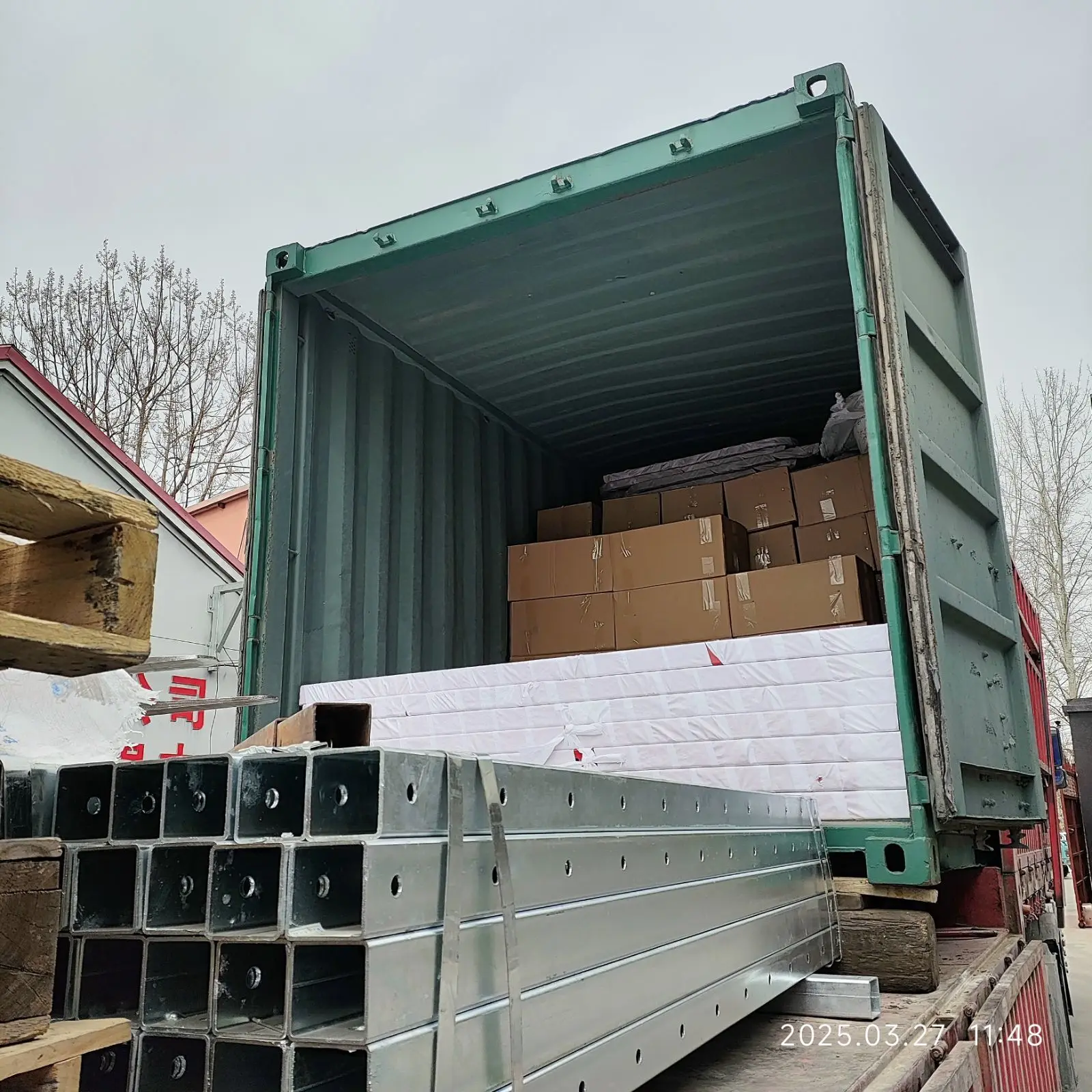

Load Quantity of 20"/40" Container |
13/30sets |
13/30sets |
|||||||||

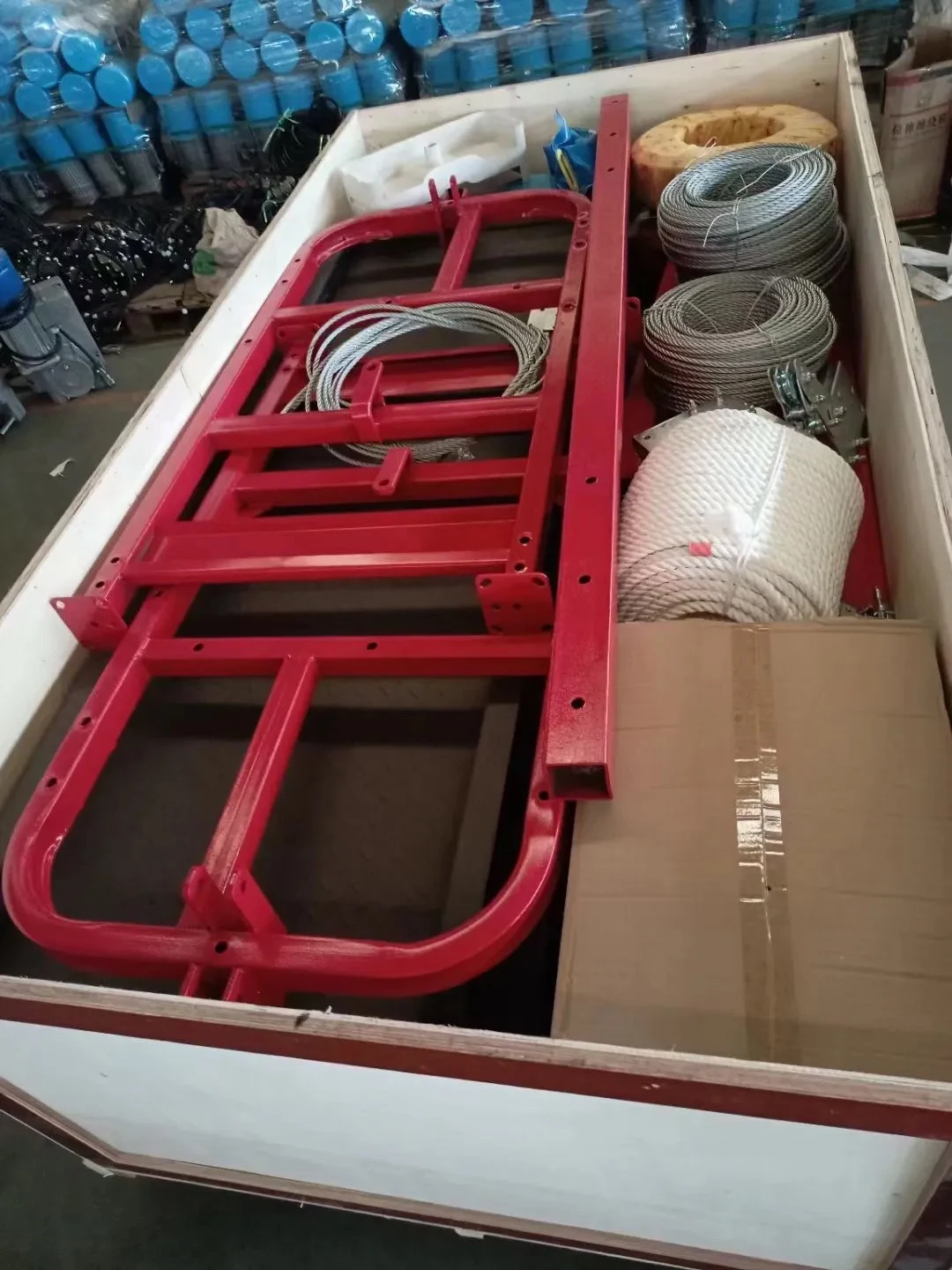

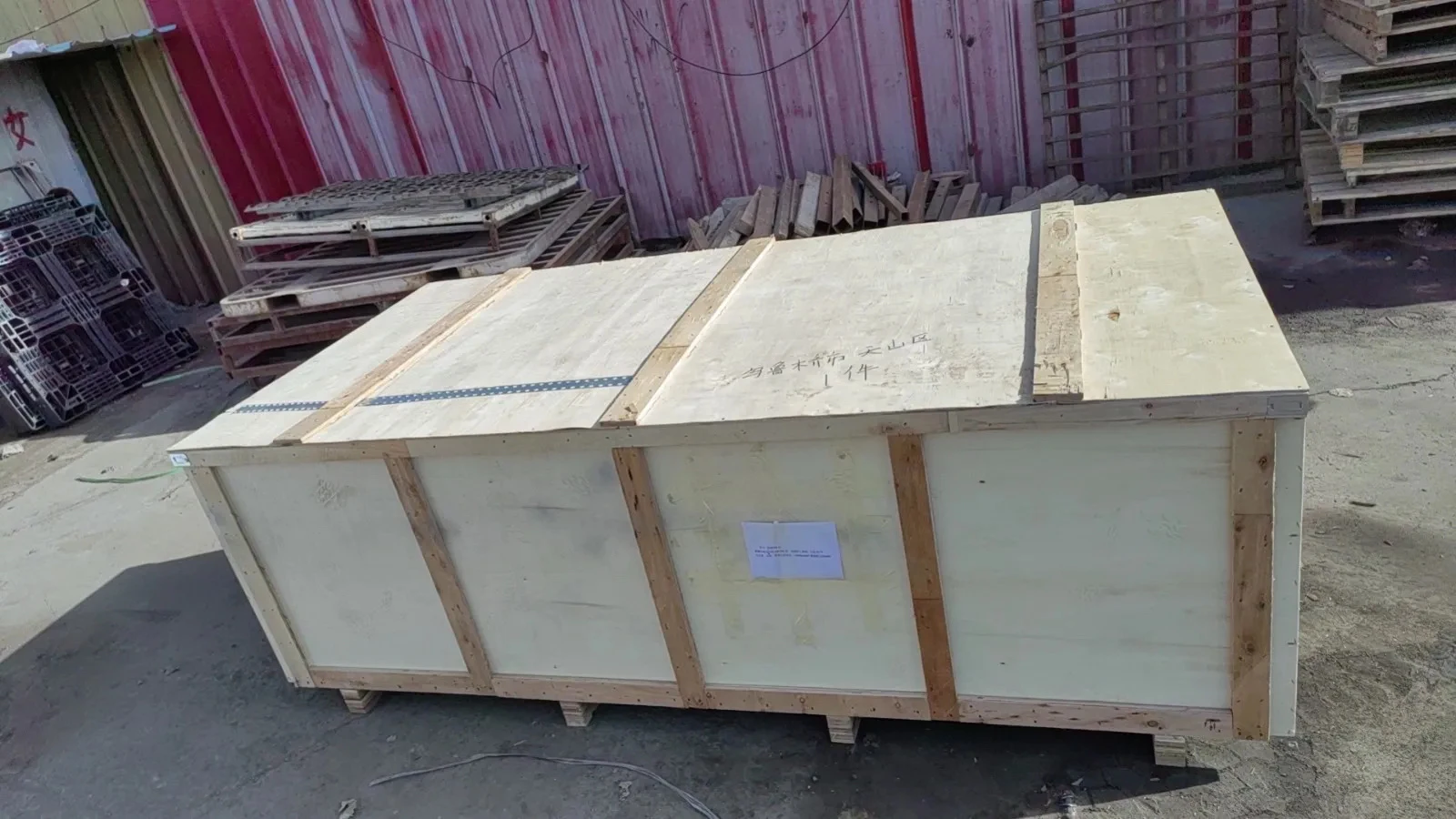

Wooden box packaging size |
2.5*1.3*0.9m |
2.5*1.3*0.9m |
|||||||||
