Manufacture ZLP1000 Building Facade Lift Cradle / Suspended Platform

Manufacture ZLP1000 Building Facade Lift Cradle / Suspended Platform

After-sale services All products are warranted for two years.

Additional consumables are given.

Guarantees timely delivery Detailed installation of after-sales video.

Strong technical team support.

Description

Product Introduction

Recommended Model			ZLP630 ZLP800 Suspended Platform Parameter
1	Model			ZLP630			ZLP800
2	Rated load			630kg			800kg
3	Lifting speed			9.3+0.5 m/min			8.0+0.5 m/min
Working Platform	Working Cage*1 Set	Dimension L×W×H(m)	6m(2+2+2)×0.69×1.18m			7.5m(2.5+2.5+2.5)×0.69×1.18
				Material	Q235 Steel or Aluminum Alloy			Q235 Steel or Aluminum Alloy
				Surface	Painting/HDG/Aluminum Alloy			Painting/HDG/Aluminum Alloy
				Bottom Wheels	4 pcs			4 pcs
				Wall Roller	2 pcs			2 pcs
		Hoist*2 sets	Model	LTD6.3			LTD8.0
				Lifting Speed	9.3±0.5 m/min			9.3±0.5 m/min
				Pulling power	6.3KN			8.0KN
				Quantity	2pcs			2pcs
				Power	1.5 kw*2			1.8 kw*2
				Voltage	380v/50Hz or 220V/60HZ			380v/50Hz or 220V/60HZ
				Rotational speed	1420 rpm			1420 rpm
				Braking Torque	15N.m			15N.m
		Safety Lock*2 sets	Model	LSG20			LSG30
				Locking Rope Angle	3°~8°			3°~8°
				Allow impulsive force	20 KN			20 KN
				Steel Wire Diameter	8.3mm			9.1mm
		Electric Cabinet	Component Brand	CHNT			CHNT
				Surface	Galvanized			Galvanized
Suspension Mechanism	2 Sets	Front beam overhanging	1.3~1.6 m			1.3~1.6 m
				Beam adjustable height	1.06~1.66 m			1.06~1.66 m
				Surface	Painting or HDG			Painting or HDG
Electric Cable	l set	Length	100 m			100 m
Steel Wire Rope	4 Sets	Diameter	8.3mm			9.1mm
Safety Rope	l set	l set	18mm			18mm
Load Quantity of 20"/40" Container					13/30sets			13/30sets
Wooden box packaging size					2.51.30.9m			2.51.30.9m

Product advantages

Global standard adaptation, excellent load-bearing performance Material upgrade: high-strength Q355B steel or 6061-T6 aluminum
alloy is used, which meets international standards (ASTM, EN), and the single span load-bearing capacity can reach 2 tons, meeting
the stringent requirements of agricultural machinery access and heavy equipment support in Europe, America, Southeast Asia and
other regions.

Customization

Customizable models and colors24-hour online service
Simple control
Seasonal maintenance Versatility
20 years production experience Free accessories mailing
3D Full Landscape Factory

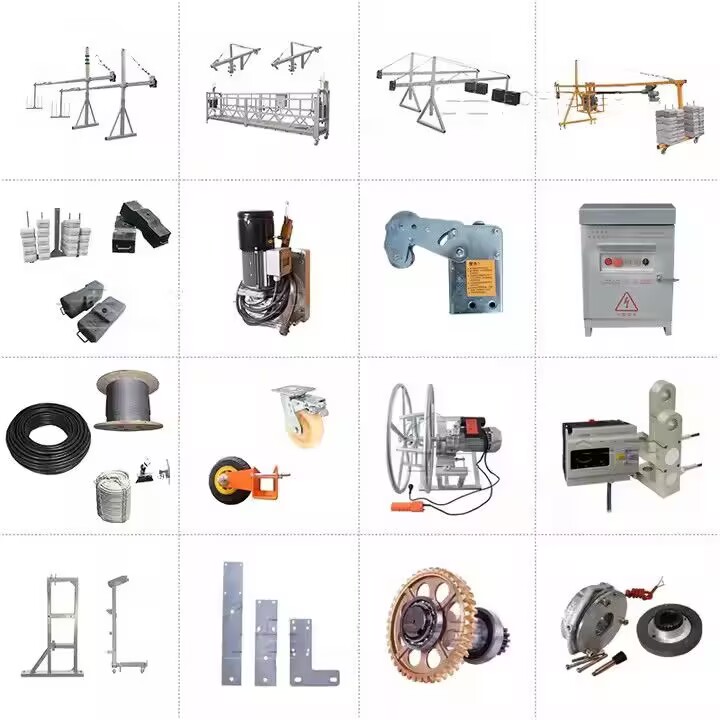

Product Line

Matching Products

Company Information

Our certificates

FAQ

Q: Are you a manufacturer?

A: Yes , we are a manufacturer, We have own factory, which is located in TIANJIN,CHINA. We have a leading power in producing and exporting steel pipe,galvanized steel pipe,hollow section,galvanized hollow section etc. We promise that we are what you are looking for.

Q:Can we visit your factory ?

A:Warmly welcome once we have your schedule we will pick you up

Q: Do you have quality control?

A: Yes, we have gained BV, SGS authentication. Q: Can you arrange the shipment? A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.

Q:How can we get the offer?

A:Please offer the specification of the product,such as
material,size,shape,etc.So we can give the best offer.

Q:Can we get the some samples?Any charges?

A: Yes , we could offer the

sample for free charge but do not pay the cost of freight . If you place the order after confirm the sample , we will refund your express freight or deducte it from the order amount .

Q: How do you make our business long-term and good relationship ?

A: 1.We keep good quality and competitive price to ensure our customers' benefit. 2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.

Q: What is your terms of payment ?

A:Payment<=5000USD, 100% deposit . Payment>=5000USD , 30% T/T deposit , 70% balance by T/T or L/C before shippment.
